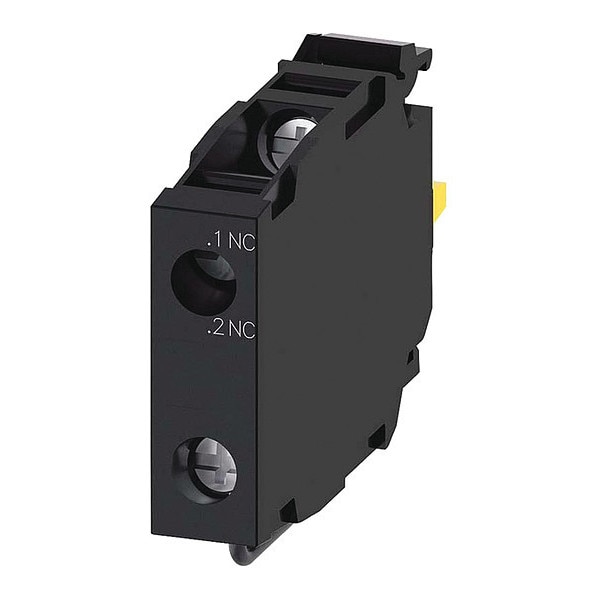

Bloque de contacto, acción momentánea, 22mm.
| Item | Contact Block |
|---|---|
| Size | 22 mm |
| Action | Momentary |
| Contact Form | 1NC |
| Color | Black |
| Application | Control Station |
| Standards | CCC, CE, CSA, UL Listed, VDE |
| NEMA Contact Rating Designation | A600, R300 |
| Contact Rating | 10A @ 600V AC, 1A @ 600V DC |
| Safety Rating | IEC 60947 |
| Terminal Connection | Screw/Clamp |
| For Use With | 3SU1 Operators |
| DC Contact Rating | 0.1 A @ 400 V, 0.1 A @ 500 V, 0.3 A @ 230 V, 0.3 A @ 400 V, 0.3 A @ 500 V, 0.7 A @ 110 V, 1 A @ 230 V, 1.5 A @ 48 V, 10 A @ 24 V, 2.5 A @ 110 V, 3 A @ 24 V, 5 A @ 48 V |
| AC Contact Rating | 1.4 A @ 500 V, 10 A @ 110 V, 10 A @ 24 V, 10 A @ 48 V, 3 A @ 400 V, 6 A @ 110 V, 6 A @ 230 V, 6 A @ 24 V, 6 A @ 48 V, 8 A @ 230 V, 8 A @ 400 V |
| Type of electric connection | Screw connection |
| Number of contacts as normally closed contact | 1 |
| Number of contacts as normally open contact | 1 |
| Number of fault-signal switches | 0 |
| Number of contacts as change-over contact | 0 |
| Mounting method | Front fastening |
| Connection Size | 22 mm |
| Terminal Connection Type | Screw Terminals |
| Includes Mounting Block | Mounting Block Included |
| Compatible with Series | 3SU1 |
| Compatible Operator | Indicator Light, Push Button |
| Switch Action | Momentary |
| Package Quantity | 1 |
