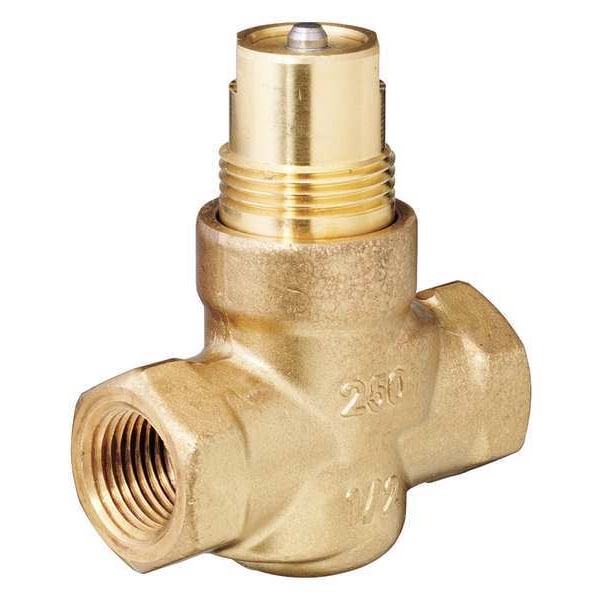

Control Valve, Globe, 1/2 in. NPT
| Item | Hydronic Globe Valve |
|---|---|
| Type | Globe |
| For Use With | Water |
| Coefficient of Volume | 0.63 |
| Depth (In.) | 1-5/16 |
| Includes | Control Valve |
| Height (In.) | 2-1/4 |
| Width (In.) | 2-3/4 |
| Specifications | Brass Trim, Globe Valve, MT Series |
| Connection Type/Size (In.) | NPT 1/2 |
| Max. Water Temp. (Deg. F) | 250 Degrees F |
| Agency Compliance | UL |
| Actuator Type | Not Applicable |
| Rangeability | Greater Than50:1 |
| Actuator Return Action | Not Applicable |
| Packing Material | Ethylene Propylene |
| Actuator Input Voltage | Not Applicable |
| Flow Characteristic | Equal Percentage |
| Close-Off Pressure | 160 psi |
| Operating Temperature - Maximum | 250 deg F |
| Trim Material | Brass |
| Actuator Control Pressure - Minimum | Not Applicable |
| Port Connection Size | 1/2 in |
| Stem Material | Stainless Steel |
| Configuration | Straight-Thru |
| Cartridge Material | Not Applicable |
| Gasket Material | Ethylene Propylene |
| Stem Travel | 7/32 in |
| Body Pattern | Two-Way |
| Body Material | Brass |
| Overall Height | 3-1/16 in |
| Overall Length | 2-3/4 in |
| Actuator Control Pressure - Maximum | Not Applicable |
| Leakage Rate | 0.01% |
| For Media | Water, Water-Glycol Solution to 50% |
| Actuator Control Signal | Not Applicable |
| Operating Temperature - Minimum | 35 deg F |
| ANSI Rating | ANSI Class 250 |
| Overall Depth | 1-9/16 in |
| Includes Actuator | Actuator Not Included |
| Port Connection Gender | Female |
| Valve Action | Normally Open |
| Manufacturer Series | MT |
| Port Connection Type | NPT |
| Coefficient of Volume (Cv) | 0.63 |
| Seat Material | Stainless Steel |
| Installation Orientation | Versatile |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
