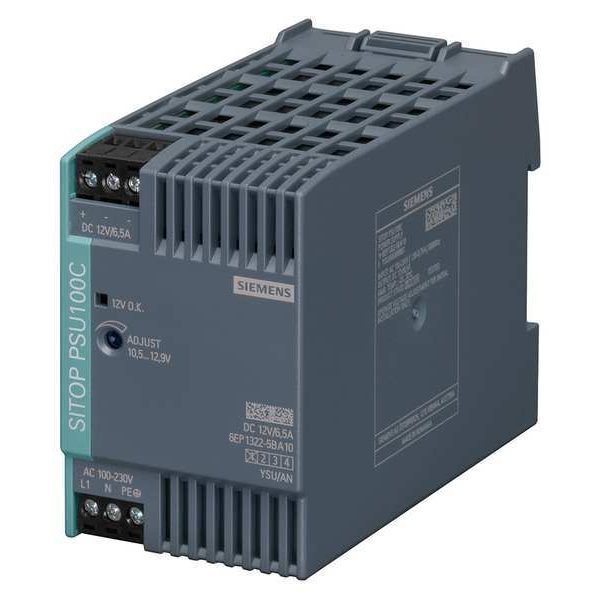

DC Power Supply, 110/300V DC; 120/230V AC, 12V DC, 78W, 6.5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 110/300V DC; 120/230V AC |
| Output Voltage | 12V DC |
| Power Rating | 78 W |
| Output Amps | 6.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 80 mm |
| Width | 52 mm |
| Depth | 100 mm |
| Hz | 50/60 Hz |
| Status Indicator | Green LED OK Signal |
| Series | SITOP PSU100C |
| IP Rating | IP20 |
| Standards | CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Output Noise | 200/80mV |
| Peak Amps | 31 |
| Operating Temp. Range | -20 to 70 deg C |
| Hold Up Time | Greater than 20 msec |
| Protection | Short-Circuit Proof |
| Connection | Screw |
| Regulated / Unregulated | Regulated |
| Current - Inrush | 31 A |
| Current - Peak | 31 A |
| Operating Temperature - Maximum | 158 deg F |
| Special Features | Short Circuit Protection |
| Output Power - Rated | 78 W |
| Current - Output | 6.5 A |
| Housing Material | Plastic |
| NEMA Enclosure Rating | 1 |
| Wire Connection Type | Terminals |
| Operating Temperature - Minimum | -4 deg F |
| Package Quantity | 1 |
