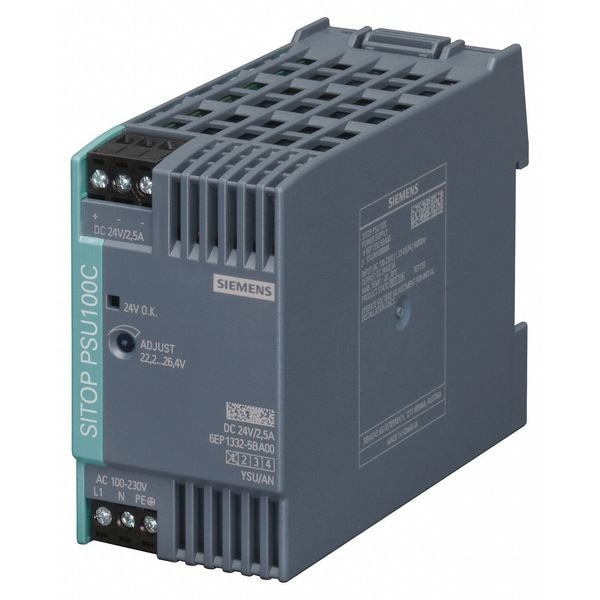

DC Power Supply, 110/300V DC; 85/264V AC, 24V DC, 60W, 2.5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 110/300V DC; 85/264V AC |
| Output Voltage | 24V DC |
| Power Rating | 60 W |
| Output Amps | 2.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 80 mm |
| Width | 45 mm |
| Depth | 100 mm |
| Hz | 50/60 Hz |
| Hold Up Time | Greater than 20 msec |
| Peak Amps | 3 |
| Output Noise | 200/55mV |
| Standards | CE, CSA, EAC, NEC Class 2, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Operating Temp. Range | -20 to 70 deg C |
| Status Indicator | Green LED OK Signal |
| IP Rating | IP20 |
| Series | SITOP PSU100C |
| Protection | Short-Circuit Proof |
| Connection | Screw |
| Regulated / Unregulated | Regulated |
| Current - Inrush | 31 A |
| Operating Temperature - Minimum | -4 deg F |
| Current - Peak | 3 A |
| Output Power - Rated | 60 W |
| Operating Temperature - Maximum | 158 deg F |
| Housing Material | Plastic |
| Current - Output | 2.5 A |
| NEMA Enclosure Rating | 1 |
| Wire Connection Type | Terminals |
| Special Features | Overvoltage Protection, Short Circuit Protection |
| Package Quantity | 1 |
