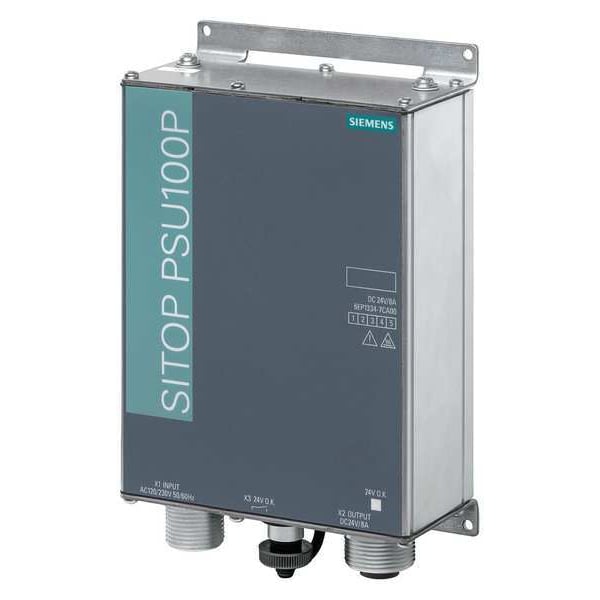

DC Power Supply, 120/230V AC, 24V DC, 192W, 8A, Wall
| Item | DC Power Supply |
|---|---|
| Input Voltage | 120/230V AC |
| Output Voltage | 24V DC |
| Power Rating | 192 W |
| Output Amps | 8 A |
| Mounting | Wall |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 181 mm |
| Width | 120 mm |
| Depth | 60.5 mm |
| Hz | 50/60 Hz |
| Output Noise | 100 mV |
| Operating Temp. Range | -4 to 140 deg F |
| Standards | CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Status Indicator | Flashing Red Overload, Green OK Signal |
| Hold Up Time | 40 msec |
| IP Rating | IP67 |
| Peak Amps | 15 |
| Series | SITOP |
| Regulated / Unregulated | Regulated |
| Protection | Short-Circuit Proof |
| Connection | Screw |
| Operating Temperature - Minimum | -13 deg F |
| Wire Connection Type | Terminals |
| Current - Inrush | 15 A |
| Special Features | Overvoltage Protection, Short Circuit Protection |
| Housing Material | Aluminum |
| Current - Peak | 15 A |
| Output Power - Rated | 192 W |
| Operating Temperature - Maximum | 140 deg F |
| Current - Output | 8 A |
| NEMA Enclosure Rating | 1 |
| Package Quantity | 1 |
