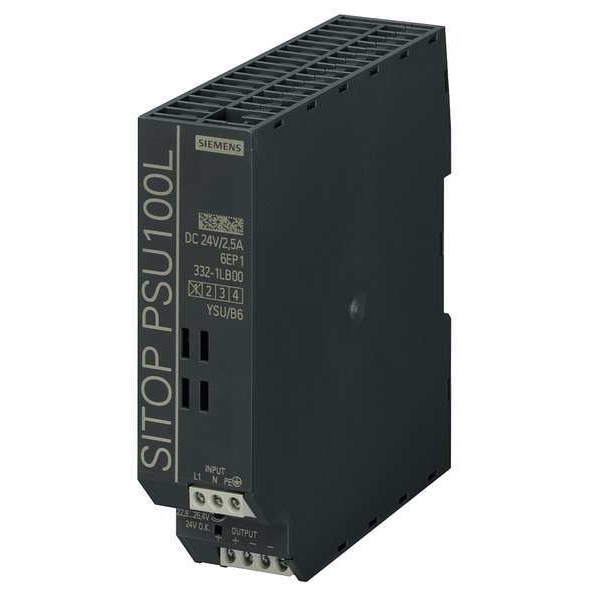

DC Power Supply, 120/230V AC, 24V DC, 60W, 2.5A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 120/230V AC |
| Output Voltage | 24V DC |
| Power Rating | 60 W |
| Output Amps | 2.5 A |
| Mounting | DIN Rail |
| Case Material | Plastic Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 125 mm |
| Width | 32 mm |
| Depth | 120 mm |
| Hz | 50/60 Hz |
| Series | SITOP PSU100L |
| Standards | CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Output Noise | 15 mV |
| Status Indicator | Green LED OK Signal |
| Hold Up Time | Greater than 20 msec |
| IP Rating | IP20 |
| Peak Amps | 27 |
| Operating Temp. Range | 0 to 60 deg C |
| Regulated / Unregulated | Regulated |
| Protection | Short-Circuit Proof |
| Connection | Screw |
| Operating Temperature - Minimum | 32 deg F |
| Special Features | Short Circuit Protection |
| Current - Peak | 27 A |
| Wire Connection Type | Terminals |
| Operating Temperature - Maximum | 140 deg F |
| NEMA Enclosure Rating | 1 |
| Current - Inrush | 27 A |
| Current - Output | 2.5 A |
| Output Power - Rated | 60 W |
| Housing Material | Plastic |
| Package Quantity | 1 |
