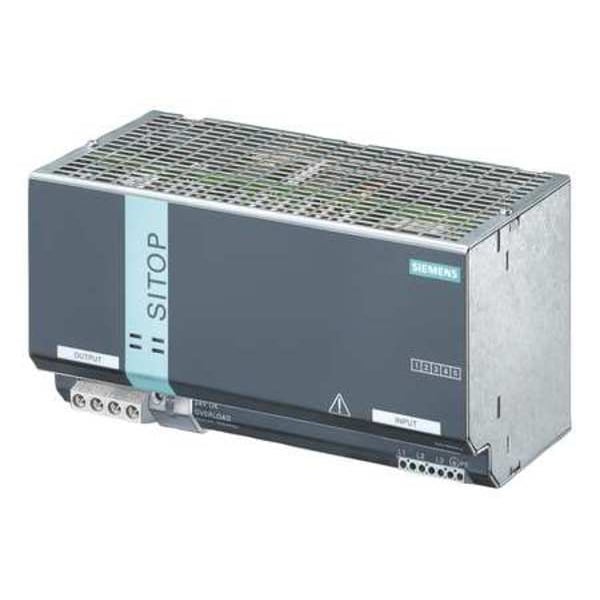

DC Power Supply, 176/264V AC; 85/132V AC, 24V DC, 960W, 40A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 176/264V AC; 85/132V AC |
| Output Voltage | 24V DC |
| Power Rating | 960 W |
| Output Amps | 40 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 125 mm |
| Width | 240 mm |
| Depth | 125 mm |
| Hz | 50/60 Hz |
| Peak Amps | 120 |
| Standards | CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Output Noise | 100/60mV |
| Operating Temp. Range | 0 to 70 deg C |
| Series | SITOP PSU100M |
| IP Rating | IP20 |
| Hold Up Time | Greater than 20 msec |
| Status Indicator | Green LED |
| Connection | Screw |
| Protection | Short-Circuit Proof |
| Regulated / Unregulated | Regulated |
| Operating Temperature - Maximum | 158 deg F |
| Operating Temperature - Minimum | 32 deg F |
| Current - Peak | 120 A |
| NEMA Enclosure Rating | 1 |
| Current - Output | 40 A |
| Special Features | Overvoltage Protection, Short Circuit Protection |
| Current - Inrush | 125 A |
| Output Power - Rated | 960 W |
| Housing Material | Metal |
| Wire Connection Type | Terminals |
| Package Quantity | 1 |
