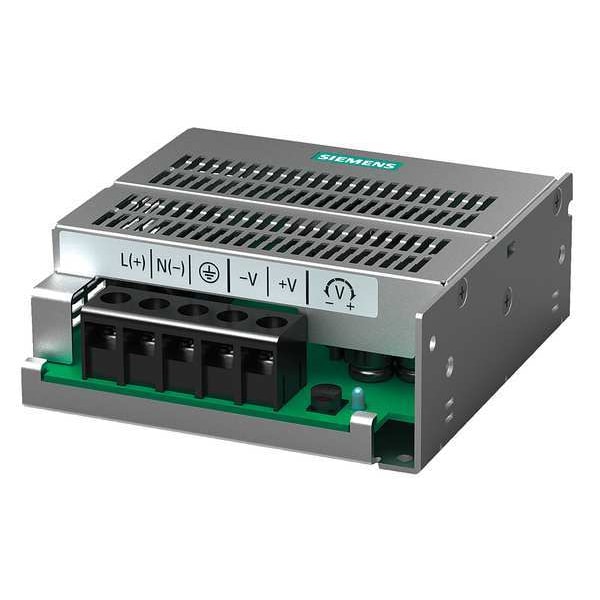

DC Power Supply, 85/264V AC, 12V DC, 36W, 3A, Wall
| Item | DC Power Supply |
|---|---|
| Input Voltage | 85/264V AC |
| Output Voltage | 12V DC |
| Power Rating | 36 W |
| Output Amps | 3 A |
| Mounting | Wall |
| Case Material | Aluminum Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 98 mm |
| Width | 97 mm |
| Depth | 38 mm |
| Hz | 50/60 Hz |
| IP Rating | IP20 |
| Operating Temp. Range | -10 to 70 deg C |
| Output Noise | 100 mV |
| Standards | BIS, CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU) |
| Hold Up Time | Greater than 15 msec |
| Peak Amps | 60 |
| Series | SITOP PSU100D |
| Status Indicator | Green LED OK Signal |
| Protection | Short-Circuit Proof |
| Regulated / Unregulated | Regulated |
| Connection | Screw |
| Current - Output | 3 A |
| Output Power - Rated | 36 W |
| NEMA Enclosure Rating | 1 |
| Input Frequency - Nominal | 50/60 Hz |
| Current - Peak | 60 A |
| Housing Material | Aluminum |
| Operating Temperature - Minimum | 14 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Package Quantity | 1 |
