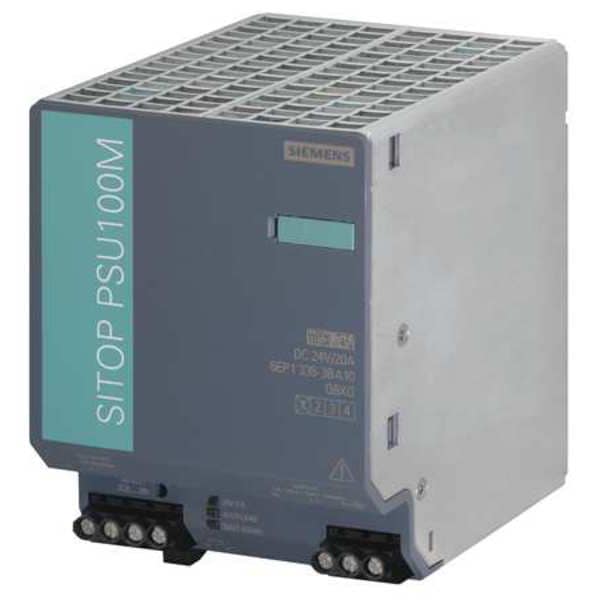

DC Power Supply, 85/275V AC; 88/350V DC, 24V DC, 480W, 20A, DIN Rail
| Item | DC Power Supply |
|---|---|
| Input Voltage | 85/275V AC; 88/350V DC |
| Output Voltage | 24V DC |
| Power Rating | 480 W |
| Output Amps | 20 A |
| Mounting | DIN Rail |
| Case Material | Metal Case |
| Phase - Electrical | Single |
| Style | Switching |
| Height | 125 mm |
| Width | 90 mm |
| Depth | 125 mm |
| Hz | 50/60 Hz |
| Status Indicator | LED |
| Standards | CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UKCA, UL, WEEE (2012/19/EU) |
| Series | SITOP PSU100M |
| Peak Amps | 60 |
| IP Rating | IP20 |
| Output Noise | 100/80mV |
| Operating Temp. Range | -25 to 70 deg C |
| Hold Up Time | Greater than 20 msec |
| Regulated / Unregulated | Regulated |
| Connection | Screw |
| Protection | Short-Circuit Proof |
| Current - Peak | 60 A |
| Output Power - Rated | 480 W |
| Operating Temperature - Minimum | -13 deg F |
| Wire Connection Type | Terminals |
| NEMA Enclosure Rating | 1 |
| Current - Inrush | 20 A |
| Housing Material | Metal |
| Special Features | Short Circuit Protection |
| Operating Temperature - Maximum | 158 deg F |
| Current - Output | 20 A |
| Package Quantity | 1 |
