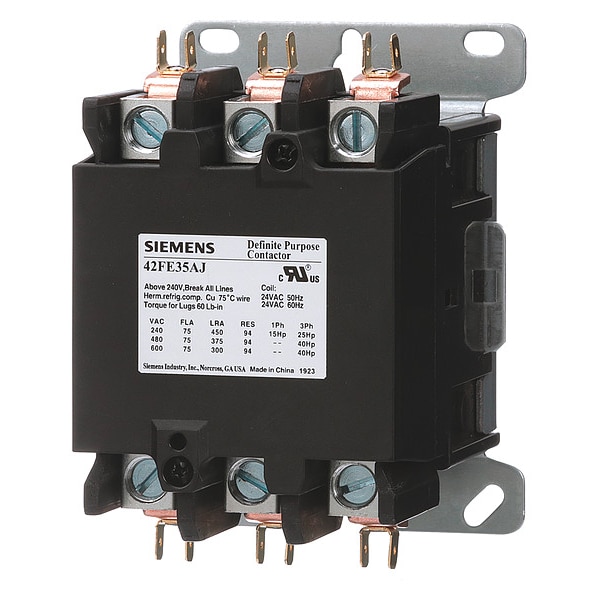

Contactador de Tipo Definido por Parámetro, 220/208-240VAC, 3 Polos, 75 Amperios.
| Item | Definite Purpose Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 75 A |
| Number of Poles | 3 |
| Coil Volts | 208 to 240V AC |
| Reversing | No |
| Height | 5.02 in |
| Width | 3-1/2 in |
| Depth | 4.39 in |
| HP @ 3 Phase - 575V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 40 hp |
| Series | 42 Series |
| Standards | REACH Art 33 |
| Hz | 50/60 |
| Phase | Three |
| Locked Rotor Load | 300 A @ 600V, 375 A @ 480V, 450 A @ 240V |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Hole Distance - Width | 2.87 in |
| Mounting Postion | Vertical |
| Reversing Capability | Non-Reversing |
| Overall Width | 3-1/2 in |
| Tungsten Lighting Current Rating | Not Applicable |
| Overall Depth | 4.39 in |
| Full Load Current - Inductive | 75 A |
| Contact Material | Silver Cadmium Oxide |
| Frame Size | Not Applicable |
| NEMA Enclosure Material | Not Applicable |
| Terminal Connection Type | Terminals |
| Contactor Style | HVACR Definite Purpose Contactor |
| Includes Shunt | Not Applicable |
| Coil Voltage | 190-220/208-240V AC |
| Overall Height | 5.02 in |
| Mounting Style | Surface |
| Maximum Operating Temperature | 158 deg F |
| Fluorescent Lighting Current Rating | Not Applicable |
| Resistance Properties | Weld Resistant |
| Mechanical Operating Durability | 250,000 |
| LED Lighting Current Rating | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 25 HP |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| Full Load Current - Resistive | 94 A |
| Input Control Type | Not Applicable |
| Frequency | 50/60 Hz |
| Maximum Voltage Rating | 600 V AC |
| Mounting Hole Distance - Height | 4.63 in |
| Horsepower @ Single Phase - 120V AC | Not Rated |
| Horsepower @ Three Phase - 480V AC | 40 HP |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Auxiliary Contact Module Capacity | 2 |
| Package Quantity | 1 |
