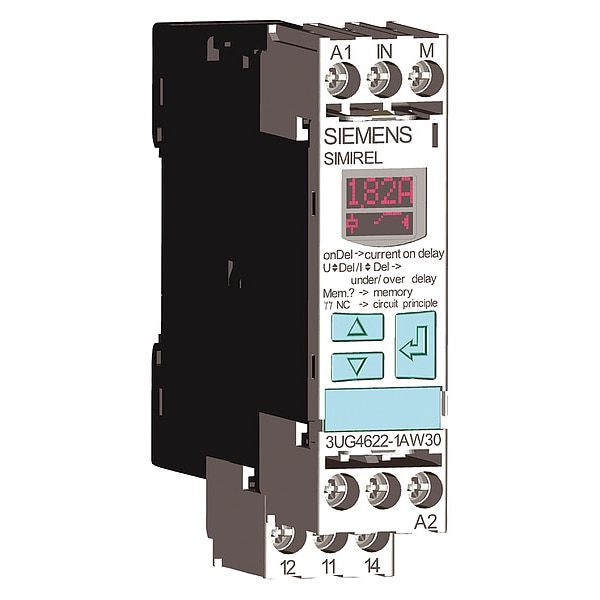

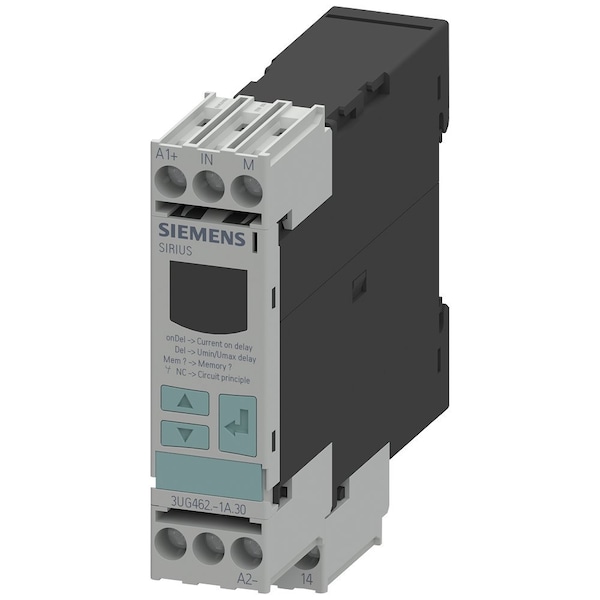

Relé de monitoreo digital, 15 A, 24VCA/CD
| Item - Relay | Current Sensing Relay |
|---|---|
| Input or Control Voltage | 21 to 26V AC/DC |
| AC Contact Rating - Relay | 3A @ 250/400V |
| DC Contact Rating - Relay | 0.10A @ 250V, 0.20A @ 125V, 1.00A @ 24V |
| Mounting - Relay | DIN Rail |
| Sensing Amp Range | 0.05 to 15 A |
| Trip Point | 0.05 to 10 A |
| Trip Delay | 0.1 to 20 sec |
| Core Type - Relay | Internal |
| Body Depth - Relay | 3.58 in |
| Body Height - Relay | 3.62 in |
| Depth | 91 millimetre |
| Electrical Connection | Screw Terminal |
| Sensor Opening | Internal |
| Core Type | Internal |
| Max. Inrush Current | 5 A |
| Body Width - Relay | 0.88 in |
| Type of Output | Relay |
| Width | 23 millimetre |
| Status Indicator | No Indicator |
| Overall Height - Relay | 3.62 in |
| Item | Digital Monitoring Relay |
| Input Voltage | 24V AC/DC |
| Contact Rating (DC) | 0.1 A @ 250 V, 0.2 A @ 125 V, 1 A @ 24 V |
| Contact Rating (AC) | 3 A @ 250/400V, 3 A @ 400V |
| Minimum Operating Temperature | -13 deg F |
| Current Rating | 15 A |
| Electrical Phase | Single |
| Body Depth | 3.58 in |
| Maximum Operating Temperature | 140 deg F |
| Wire Gauge | 14 AWG, 20 AWG |
| Compatible with Manufacturer Model Number | 3UG3522-1AC, 3UG4622-1AA30 |
| Trip Point Type | Adjustable |
| Frequency | 50/60 Hz |
| Adjustment Interface | Digital |
| Overall Depth | 3.62 in |
| Trip Delay Type | Adjustable |
| Operating Current | 0.05-15 A |
| IP Rating | IP20 |
| Electrical Operating Durability | 100,000 |
| Adjustment Method | Switch |
| Body Width | 0.89 in |
| Standards | CCC, CS, EAC, RCM, UL Listed |
| Monitored Parameters | Overcurrent, Undercurrent |
| Body Height | 3.62 in |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Style | Snap On |
| Height | 92 millimetre |
| function direct current window present | Yes |
| direct voltage undercurrent possible | Yes |
| Max. rated DC voltage for controls | 24 V |
| Min. response delay | 0.1 second |
| Lowest value of measurement range for current | 0 ampere |
| Design of electrical connection | Screw connection |
| direct voltage overcurrent possible | Yes |
| Max. rated AC voltage for controls, 50 Hz | 26.4 V |
| min. rated control voltage Us with DC | 24 V |
| min. rated control voltage Us with AC 50 Hz | 20.4 volt |
| Max. response delay | 20 second |
| detachable terminals present | Yes |
| Max. delay time | 20 second |
| 1 phase low current possible | Yes |
| 1-phase overload current possible | Yes |
| max. rated AC voltage for controls (60 Hz) | 26.4 V |
| min. rated control voltage Us with AC 60 Hz | 20.4 volt |
| Greatest value of measuring range for current | 15 ampere |
| Package Quantity | 1 |
