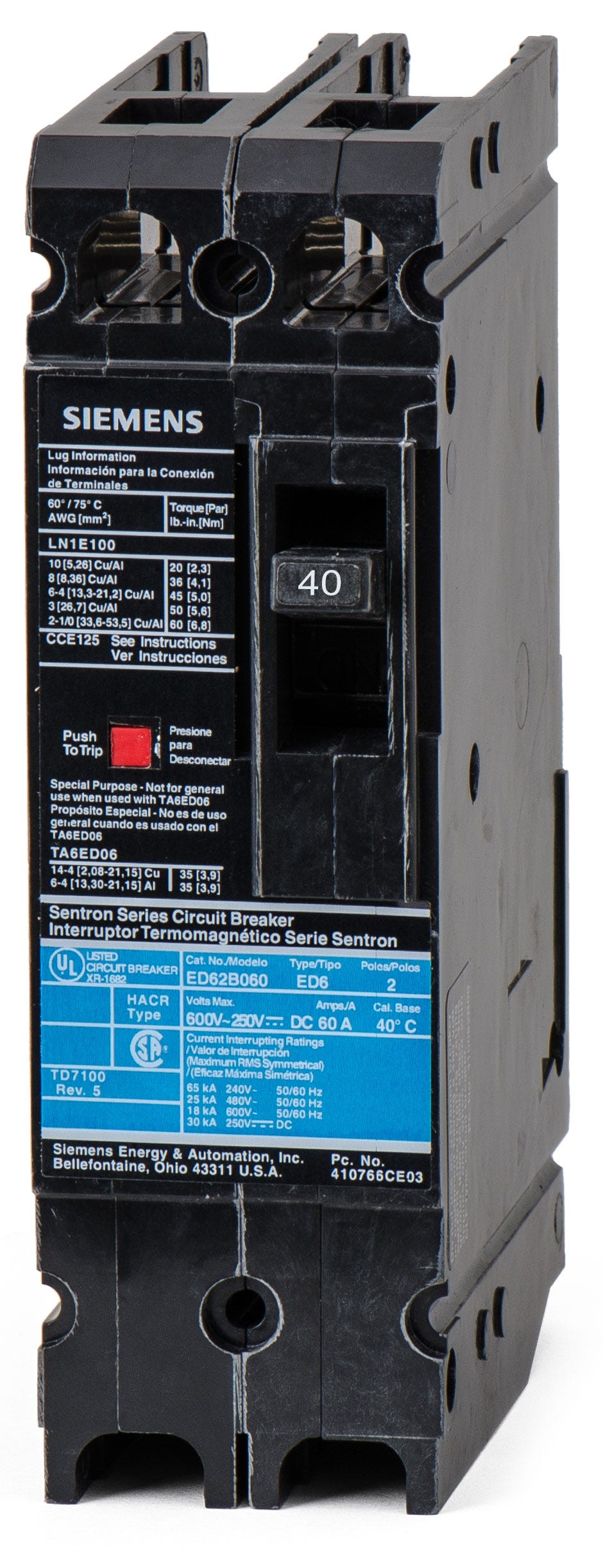

The Siemens ED62B040 is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 40 Amps and a voltage rating of 600VAC. It has an interrupting rating of 25kAIC at 480V. The ED62B040 has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | Sentron |
| Amperage | 40 |
| Voltage | 600VAC |
| Poles | 2 |
| Phase | 1 |
| Mounting Type | Bolt-On |
| Approval | UL, CSA |
| Interrupting Rating | 25kAIC at 480V |
| Frame Type | ED |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | ED62B040 |
| Upc | 783643209565 |
| Gtin | 783643209565 |
