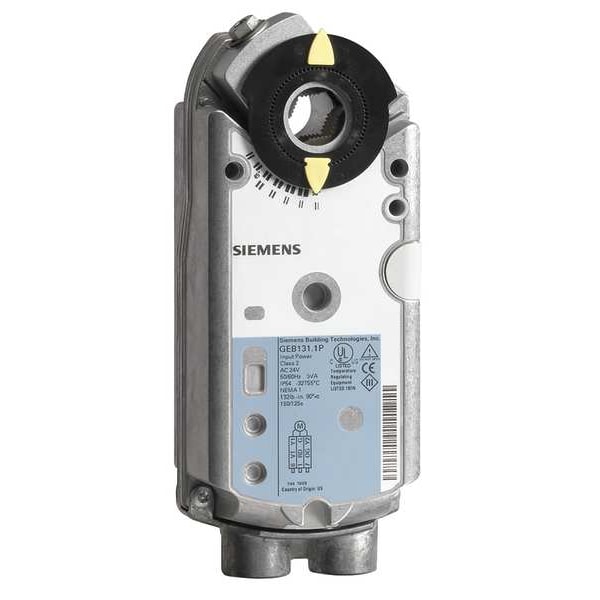

Electric Actuator, 132 in.-lb., Floating
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Floating Point |
| Torque | 132 in-lb |
| Voltage | 24V AC |
| Type | Non-Spring Return |
| Shaft Type | Self-Centering |
| Height | 8-3/8 in |
| Replaces Honeywell Motors | Mfr. No. MN6120A1002 |
| For Use With | Dampers |
| Motor Direction | CW, CCW |
| Ambient Temp. Range | -25 to 130 deg F |
| Width | 3-1/4 in |
| Item | Actuator |
| Includes | Mounting Bracket |
| Stroke Deg. | 90 |
| Power Consumption | 1.1 W |
| Depth | 2-2/3 in |
| Electrical Connections | 3 ft 18 AWG Lead |
| Timing | 125 sec |
| Number of Auxiliary Switches | 0 |
| Maximum Operating Temperature | 130 deg F |
| For Shaft Diameter | 1 in |
| For Shaft Width | 1 in |
| For Shaft Shape | Round, Square |
| NEMA Rating | 2 |
| Housing Material | Aluminum |
| Output Signal | Not Applicable |
| Stroke Degree | 90 Degrees |
| Rated Torque | 177 in-lb |
| Weight | 4.4 lb |
| Minimum Operating Temperature | -25 deg F |
| Shaft Rotation | CW, CCW |
| Electrical Connection Type | Hardwired |
| Contact Form | Not Applicable |
| Overall Height | 8-3/8 in |
| Product Type | Actuator |
| Input Voltage | 24V AC/DC |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Valve Application | Damper |
| Overall Width | 3-1/4 in |
| IP Rating | IP54 |
| Standards | CE Electromagnetic Compatibility 2014/30/EU, CSA E60730, CE Low-Voltage Directive 2006/95/EC, UL 60730 |
| For Shaft Height | 1 in |
| Overall Depth | 2-3/8 in |
| Time to Close | 150 sec |
| Application | Dampers |
| Power Rating | 24VAC/VDC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
