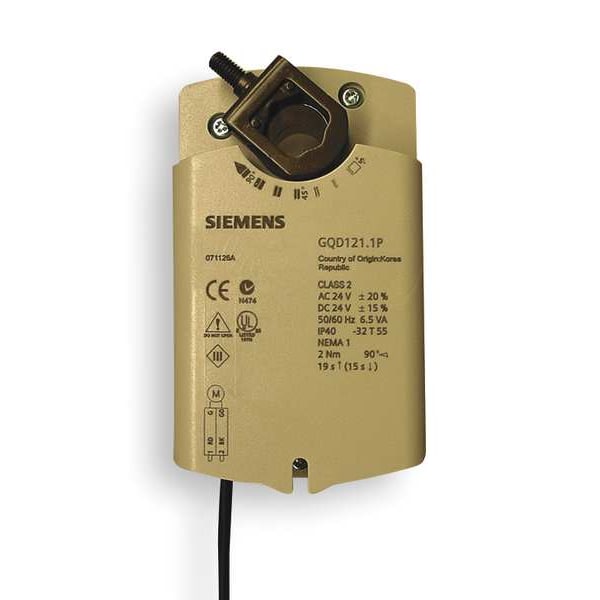

Electric Actuator, 20 in.-lb., 24VAC/DC
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Spring Return |
| Signal Type | On/Off |
| Torque | 20 in-lb |
| Voltage | 24V AC/DC |
| Type | Spring-Return |
| Shaft Type | Set Screw Shaft Coupling |
| Width | 2-11/16 in |
| For Use With | Valves and Dampers |
| Ambient Temp. Range | -25 to 130 deg F |
| Motor Direction | CW, CCW |
| Power Consumption | 6.5 VA |
| Item | Actuator |
| Includes | Hex Key, Mounting Bracket Screws |
| Replaces Honeywell Motors | Mfr. No. MS8105A1008 |
| Stroke Deg. | 90 |
| Electrical Connections | 3 ft 18 AWG Lead |
| Timing | 15 sec Spring Return, 30 sec |
| Depth | 2-15/32 in |
| Height | 4-23/32 in |
| For Shaft Diameter | 1/2 in |
| Minimum Operating Temperature | -25 deg F |
| Overall Depth | 2-1/2 in |
| NEMA Rating | 1 |
| Product Type | Actuator |
| IP Rating | IP40 |
| Input Voltage | 24V AC/DC |
| Stroke Degree | 90 Degrees |
| Time to Close | 15 sec |
| Electrical Connection Type | Hardwired |
| Housing Material | Plastic |
| Output Signal | 2 to 10V DC |
| Rated Torque | 20 in-lb |
| Standards | CE Certified, cUL Listed, UL Listed, UL 1995 |
| For Shaft Shape | Round, Square |
| Valve Application | Damper |
| Weight | 1.06 lb |
| Maximum Operating Temperature | 130 deg F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Application | Dampers, Economizers |
| For Shaft Width | 1/2 in |
| For Shaft Height | 1/2 in |
| Contact Form | Not Applicable |
| Plenum Rating | Plenum Rated |
| Power Rating | 4.5 W |
| Overall Width | 2-3/4 in |
| Shaft Rotation | CW, CCW |
| Time to Open | 90 sec |
| Overall Height | 5-1/2 in |
| Number of Auxiliary Switches | 0 |
| Country of Origin (subject to change) | Korea, Republic of |
| Package Quantity | 1 |
