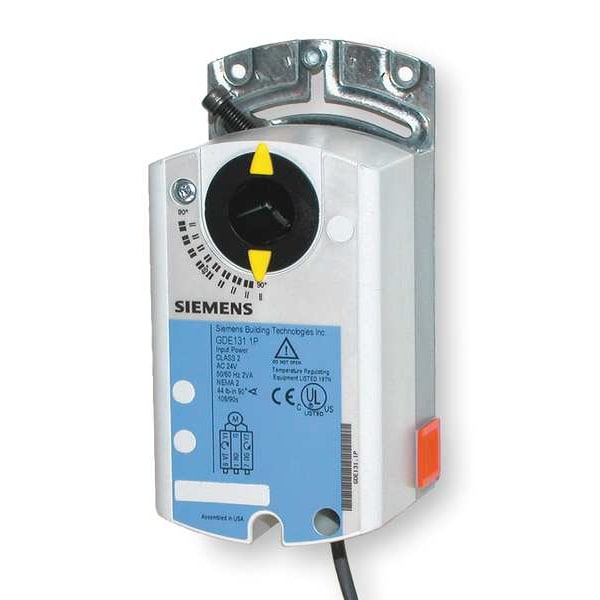

Electric Actuator, 44 in.-lb., -25 to130
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Non-Spring Return |
| Signal Type | Floating Point |
| Torque | 44 in-lb |
| Voltage | 24V AC |
| Type | Non-Spring Return |
| Height | 5-7/16 in |
| For Use With | Valves and Dampers |
| Timing | 90 sec |
| Depth | 2-3/8 in |
| Includes | Hex Key, Mounting Bracket Screws |
| Item | Actuator |
| Motor Direction | CW, CCW |
| Electrical Connections | 3 ft 18 AWG Lead |
| Width | 2-3/4 in |
| Stroke Deg. | 90 |
| Shaft Type | Set Screw Shaft Coupling |
| Ambient Temp. Range | -25 to 130 deg F |
| Replaces Honeywell Motors | Mfr. No. MN6105A1011 |
| Power Consumption | 2.3 VA |
| Weight | 1.06 lb |
| NEMA Rating | 2 |
| For Shaft Height | Not Applicable |
| Number of Auxiliary Switches | 0 |
| Standards | 2004/108/EC, C-UL Listed, C22.2 No. 24-93, CE Certified, EN 61000-6-2, EN 61000-6-3, UL 873 |
| Overall Width | 2-3/4 in |
| Electrical Connection Type | Hardwired |
| For Shaft Shape | Round |
| Plenum Rating | Plenum Rated |
| For Shaft Diameter | 5/8 in |
| Input Voltage | 24V AC |
| Overall Depth | 2-3/8 in |
| Housing Material | Plastic |
| Valve Application | Damper |
| For Use With Building Automation Systems | Building Automation System Compatible |
| IP Rating | IP54 |
| Maximum Operating Temperature | 130 deg F |
| Time to Close | 108 sec |
| Output Signal | 0 to 10V DC |
| Overall Height | 5-1/2 in |
| Rated Torque | 44 in-lb |
| Shaft Rotation | CW, CCW |
| Time to Open | 108 sec |
| Product Type | Actuator |
| Stroke Degree | 90 Degrees |
| Contact Form | Not Applicable |
| Minimum Operating Temperature | -22 deg F |
| For Shaft Width | Not Applicable |
| Application | Dampers |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
