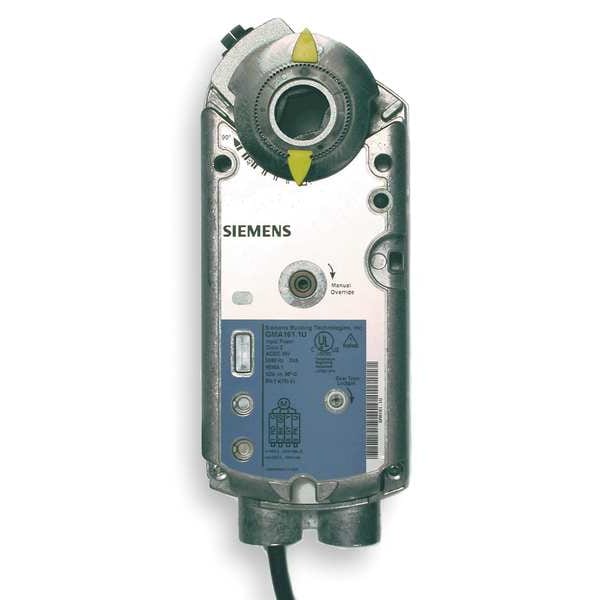

Electric Actuator, 62 in.-lb., -25 to130
| Mounting Type | Direct Mount |
|---|---|
| Spring Return | Spring Return |
| Signal Type | On/Off |
| Torque | 62 in-lb |
| Voltage | 24V AC/DC |
| Type | Spring-Return |
| Electrical Connections | 3 ft 18 AWG Lead |
| Includes | Mounting Bracket |
| Ambient Temp. Range | -25 to 130 deg F |
| Height | 8-3/8 in |
| Item | Actuator |
| Stroke Deg. | 90 |
| Replaces Honeywell Motors | Mfr. No. MS8110A1008 |
| Motor Direction | CW, CCW |
| For Use With | Valves and Dampers |
| Depth | 2-2/3 in |
| Power Consumption | 5 VA |
| Width | 3-1/4 in |
| Timing | 90 sec |
| Shaft Type | Self-Centering Shaft Coupling |
| Power Rating | 3.5 W |
| For Shaft Diameter | 3/4 in |
| Standards | CSA Certified, cUL (C22.2 No. 24-93) Listed, UL Listed, UL 60730 |
| Electrical Connection Type | Hardwired |
| Contact Form | Not Applicable |
| Plenum Rating | Plenum Rated |
| Output Signal | 0 to 10V DC |
| NEMA Rating | 1 |
| Shaft Rotation | CW, CCW |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Product Type | Actuator |
| Minimum Operating Temperature | -25 deg F |
| Valve Application | Damper |
| Overall Height | 8-3/8 in |
| Maximum Operating Temperature | 130 deg F |
| Housing Material | Aluminum |
| Time to Close | 15 sec |
| For Shaft Shape | Round, Square |
| IP Rating | IP54 |
| Overall Depth | 2-3/8 in |
| Input Voltage | 24V AC/DC |
| Overall Width | 3-1/4 in |
| Stroke Degree | 90 Degrees |
| For Shaft Height | 1/2 in |
| Number of Auxiliary Switches | 0 |
| Rated Torque | 62 in-lb |
| Weight | 2.9 lb |
| For Shaft Width | 1/2 in |
| Time to Open | 90 sec |
| Application | Dampers |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
