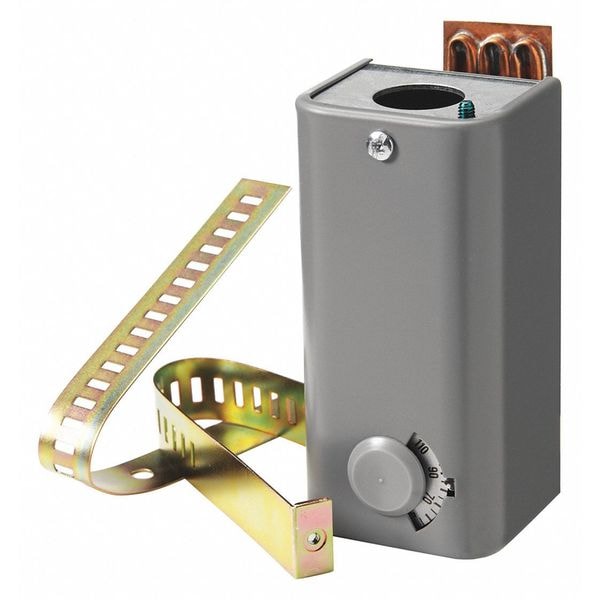

Electric Surface Mounted Thermostat, Open/Close on Rise, Vertical or Horizontal, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 240V AC |
| Mounting Location | Vertical, Horizontal |
| Switch Type | SPDT |
| Color | Gray |
| Height | 5.38 in |
| Item | Electric Surface Mounted Thermostat |
| Thermostat Switch Type | SPDT |
| Control Range | 50 to 150 deg F |
| Application | Heat and Cool |
| Enclosure Type | Single Gang Box |
| Standards | CSA Certified: File LR 948, Class 4813 02, UL Listed: File E35198, CCN XAPX |
| Locked Rotor Amps @ 120V | 60 A |
| Locked Rotor Amps @ 240V | 36 A |
| Thermostat Type | Line Voltage |
| Control Type | Screwdriver, Knob |
| Maximum Operating Temperature | 131 deg F |
| Full Load Amps @ 240V AC | 6 A |
| Temperature Differential | 4 Degrees F |
| Sensor Location | Remote |
| Overall Height | 4-7/16 in |
| Number of Poles | 1 |
| Enclosure Color | Gray |
| Full Load Amps @ 120V AC | 10 A |
| Overall Depth | 1-13/16 in |
| Temperature Control Range | 50 to 200 deg F |
| Enclosure Material | Galvanized Steel |
| Mounting Direction | Vertical, Horizontal |
| Maximum Control Temperature | 200 deg F |
| Enclosure Finish | Baked Enamel |
| Minimum Control Temperature | 50 deg F |
| Overall Width | 2-3/16 in |
| Electrical Connection Type | Hardwired |
| Contact Type | Snap Action |
| Contact Rating | 120V AC, 240V AC |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
