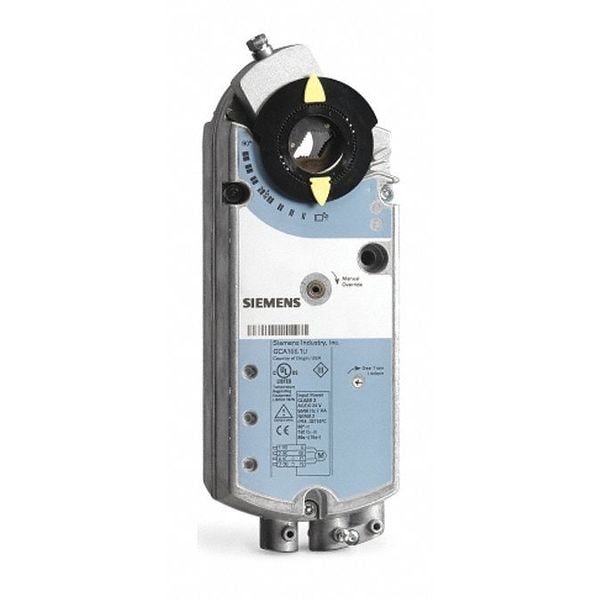

Electronic Damper Actuator, 160lb, Dual Au
| Spring Return | Spring Return |
|---|---|
| Signal Type | Proportional |
| Item | Actuator |
| Includes | Mounting Bracket |
| Overall Depth | 2-7/8 in |
| Shaft Rotation | CW, CCW |
| Power Rating | 5 W |
| For Shaft Diameter | 1 in |
| Time to Close | 15 sec |
| Weight | 4.85 lb |
| Product Type | Actuator |
| Plenum Rating | Not Plenum Rated |
| NEMA Rating | 2 |
| Standards | C-UL-US, CE Listed |
| Output Signal | 0 to 10V DC |
| Power Consumption | 7 VA |
| For Shaft Shape | Square |
| Rated Torque | 160 in-lb |
| Application | Dampers |
| Number of Auxiliary Switches | 2 |
| Overall Height | 11-3/4 in |
| Contact Form | SPDT |
| Input Voltage | 24V AC/DC |
| Valve Application | Damper |
| Time to Open | 90 sec |
| Overall Width | 4-3/4 in |
| Minimum Operating Temperature | -25 deg F |
| Electrical Connection Type | Hardwired |
| IP Rating | IP54 |
| Shaft Type | Self-Centering Shaft Coupling |
| Housing Material | Aluminum |
| Maximum Operating Temperature | 130 deg F |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
