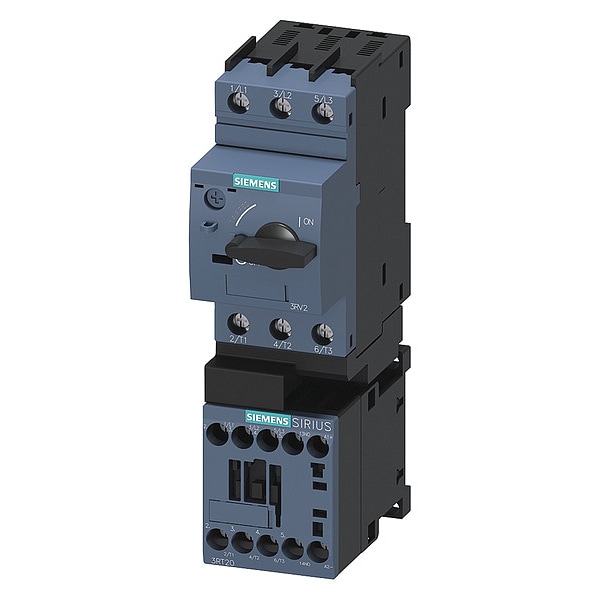

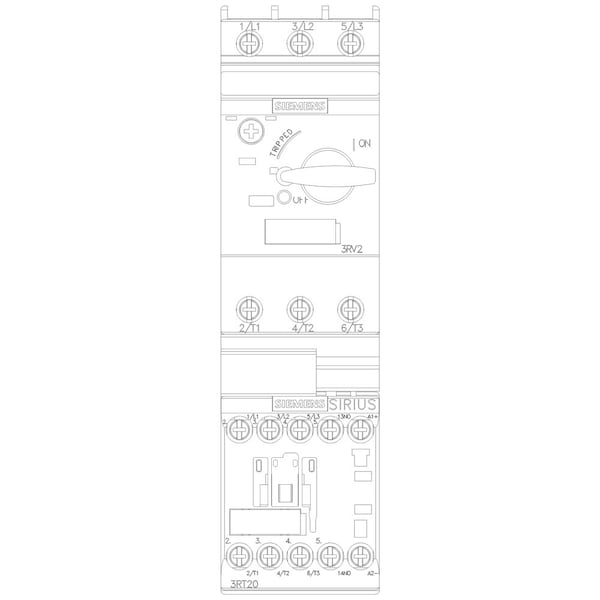

Alimentador de carga sin fusible, 24V CC, 3 polos, 1NC.
| Item | Fuseless Load Feeder |
|---|---|
| Overload Relay Amp Setting | 0.9 to 1.2 |
| Coil Volts | 24V DC |
| Auxiliary Contact Form | 1NO |
| Amps AC | 1.1 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 0.5 HP |
| HP @ 3 Phase - 575V | 1/2 hp |
| Features | Screw-Type Terminals |
| Includes | Short-Circuit Release |
| Depth | 3.82 in |
| Standards | ATEX Compliant, CE, CSA, EAC, UL Listed |
| Hz | 50/60 |
| Width | 1.77 in |
| Height | 6.57 in |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 600V AC | 0.5 HP |
| Current AC | 1.25 A |
| Maximum Overload Relay Current Setting | 1.25 A |
| Minimum Operating Temperature | -4 deg F |
| Maximum Voltage Rating | 690 V AC |
| IP Rating | IP20 |
| Overload Protection Type | Thermal |
| NEMA Enclosure Rating | No Enclosure |
| Resistance Properties | Shock Resistant, Surge Voltage Resistant |
| Includes Auxiliary Contacts | Yes |
| Trip Class | 10 |
| Overall Depth | 3.82 in |
| Series | 3RA2 |
| Minimum Overload Relay Current Setting | 0.9 A |
| Reversing Capability | Non-Reversing |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Postion | Vertical |
| Overall Height | 6.57 in |
| Mounting Style | DIN Rail |
| Number of Auxillary Contacts | 1 |
| Includes Pilot Light | No |
| Coil Voltage | 24V DC |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 480V AC | 0.5 HP |
| Starter Style | NEMA |
| Frequency | 50/60 Hz |
| Overall Width | 1.77 in |
| Package Quantity | 1 |
