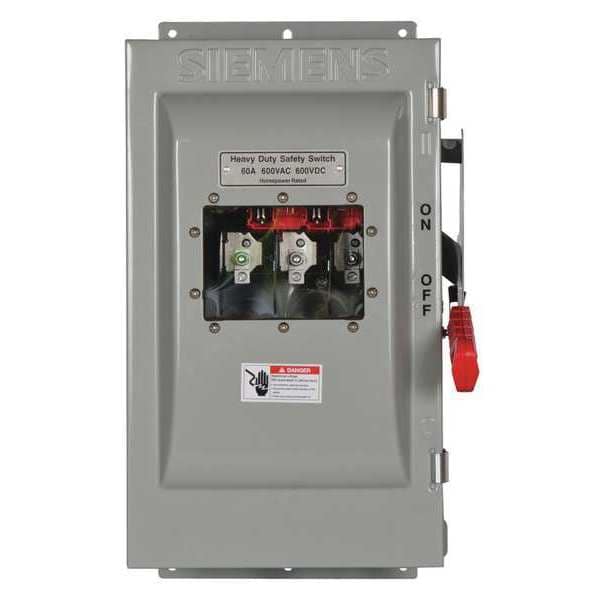

Interruptor de seguridad con fusible, resistente, 600V CA, 3PST, 60 A, NEMA 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 50 HP @ 600 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvanized Steel |
| Width | 11-1/2 in |
| Depth | 8.4 in |
| Fusible / Nonfusible | Fusible |
| For Use With | Class R Fuse |
| Height | 17-1/2 in |
| Standards | UL listed |
| Use | Protection of Heavy Duty Portable Equipment |
| Electrical Connection | Interlocked Plug |
| Features | Crouse-Hinds Arktite(R) Compatible Receptacle, Viewing Window |
| Mounting | Surface |
| Enclosure Type | Enclosed |
| For Fuse Class | Class R |
| Housing Material | Steel |
| NEMA Enclosure Rating | 12 |
| Horsepower @ 600V AC | 50 HP |
| Mounting Style | Surface Mount |
| Includes Interlocked Receptacle | Yes |
| Current Rating | 60 A |
| Environment | Indoor |
| Package Quantity | 1 |
