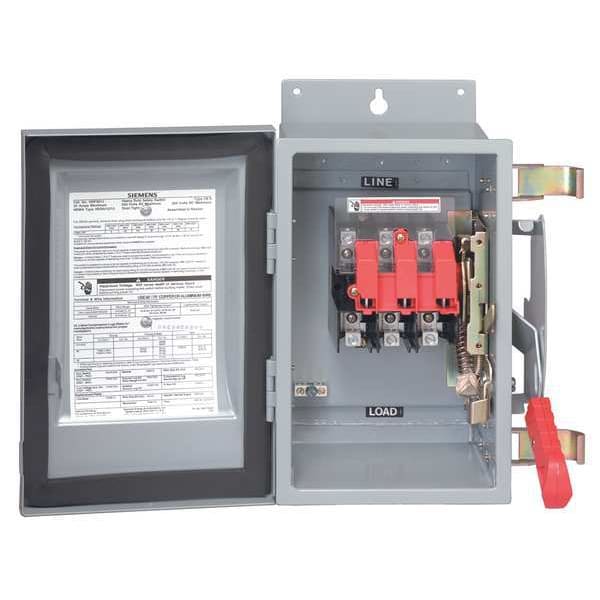

Interruptor de desconexión de seguridad solar con fusible, 600V AC/DC, NEMA 1.
| Item | Solar Safety Disconnect Switch |
|---|---|
| Protection Method | Fusible |
| Duty | Heavy Duty |
| Amps | 30 |
| Voltage | 600V AC/DC |
| Phase | 3 |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Material | STEEL |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Material of Construction | Aluminum Alloy |
| Width | 6.6 in |
| Ground Polarity | Negative |
| For Use With | Class H, J, K, L, R, T Fuse |
| Standards | CUL Listed (File E4776), UL Approved, UL98 Certified |
| Height | 14.3 in |
| Fusible / Nonfusible | Fusible |
| Indoor / Outdoor | Indoor |
| Depth | 5.1 in |
| Features | Photovoltaic Rated |
| Type | HEAVY DUTY SWITCH |
| Enclosure Type | Enclosed |
| Mounting | SURFACE |
| Electrical Connection | Mechanical Lugs |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 1 |
| Contact Material | Aluminum Alloy |
| UL 98B Certification | Yes |
| Mounting Style | Surface Mount |
| For Environment | Indoor |
| Environment | Indoor |
| For Fuse Class | Class H, Class J, Class K, Class L, Class R, Class T |
| Housing Material | Steel |
| Actuator | SINGLE THROW |
| Connection | MECHANICAL LUGS |
| Amperage Rating | 30 |
| Enclosure | TYPE 1 |
| Standard | UL98 |
| Application | DISCONNECTING MEAN FOR SERVICE ENTRANCE / LOADS |
| Environmental Conditions | -29 Cel ... 85 Cel |
| Operating Cycles | 10000 |
| Special features | PHOTOVOLTAIC RATED |
| Operating Temperature | -29 Cel ... 85 Cel |
| Package Quantity | 1 |
