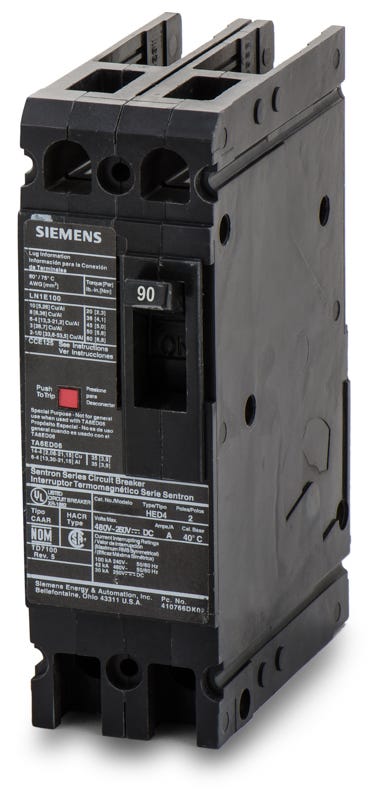

The Siemens HED42B090L is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 90 Amps and a voltage rating of 480V. It has an interrupting rating of 42kAIC at 480V. The HED42B090L has a feed-thru connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | Sentron |
| Amperage | 90 |
| Voltage | 480V |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 42kAIC at 480V |
| Connection Type | Feed-Thru |
| Protection | Thermal Magnetic |
| Functions | LI - Long-Time and Instantaneous Trip |
| Terminal Connection | Line and Load Side Lug |
| Temperature Rating | 40 °C |
| Mpn | HED42B090L |
| Upc | 783643090248 |
| Gtin | 783643090248 |
