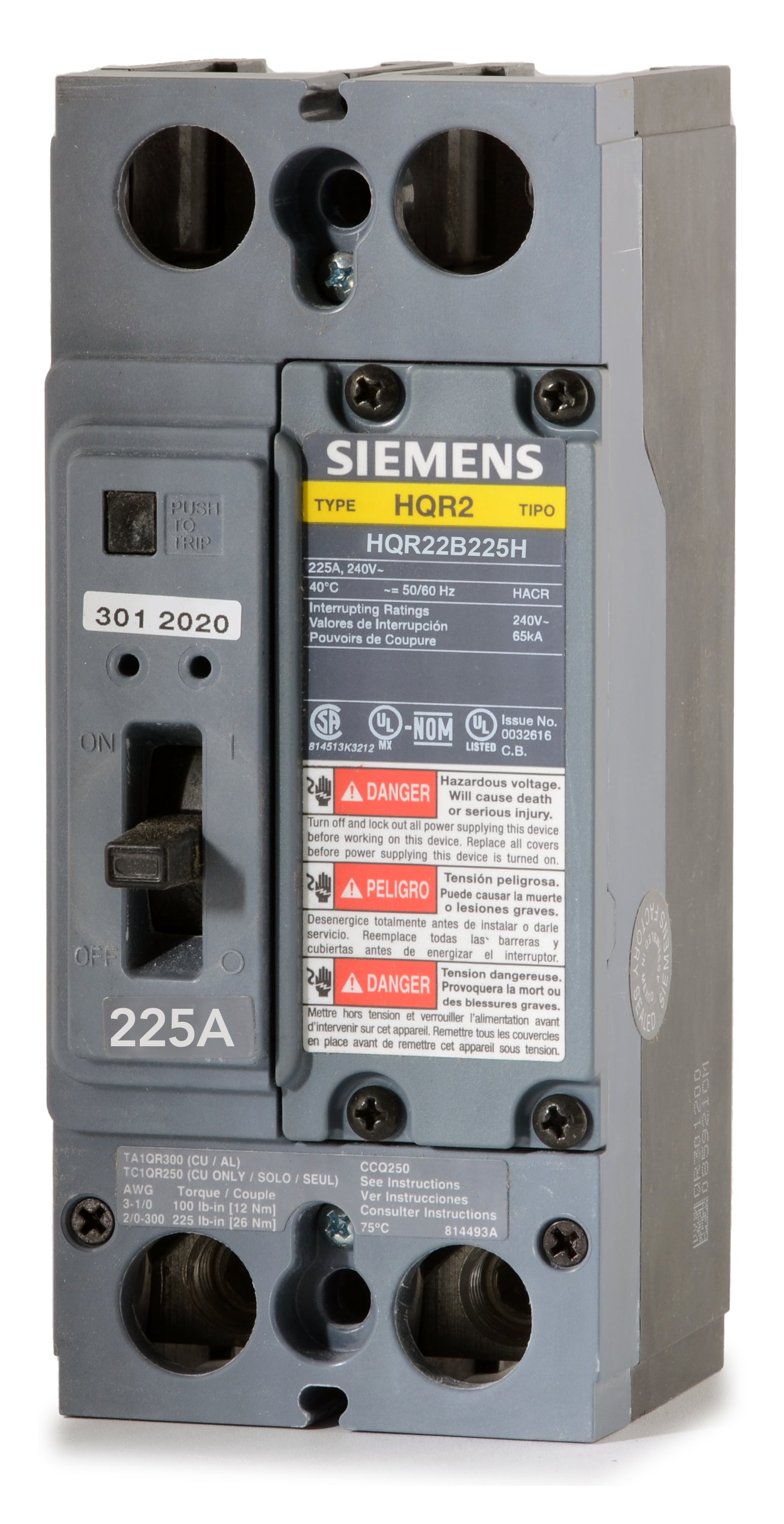

The Siemens HQR22B225H is a 2 Pole thermal magnetic molded case circuit breaker with a current rating of 225 Amps and a voltage rating of 240VAC. It has an interrupting rating of 100kAIC@240V. The HQR22B225H has a bolt-on connection type and includes long time and instantaneous trip functions.
| Brand | Siemens |
|---|---|
| Series | QR |
| Amperage | 225 |
| Voltage | 240VAC |
| Poles | 2 |
| Phase | 1 |
| Interrupting Rating | 100kAIC@240V |
| Frame Type | HQR |
| Connection Type | Bolt-On |
| Protection | Thermal Magnetic |
| Functions | Long Time and Instantaneous Trip |
| Terminal Connection | Load side lug |
| Mpn | HQR22B225H |
| Upc | 804766136511 |
