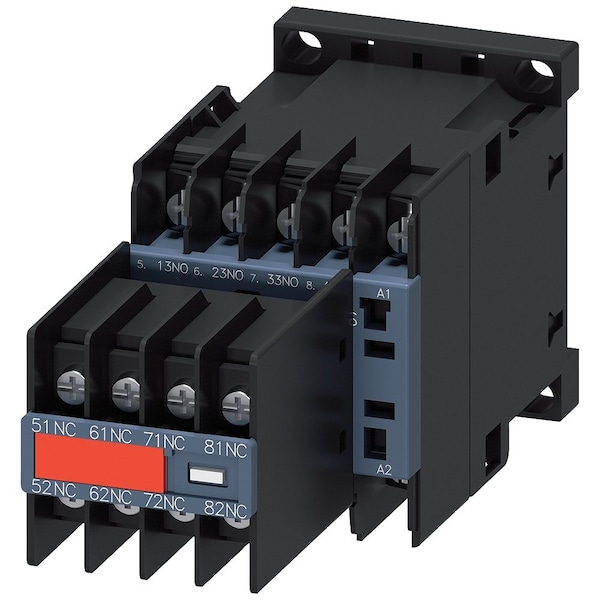

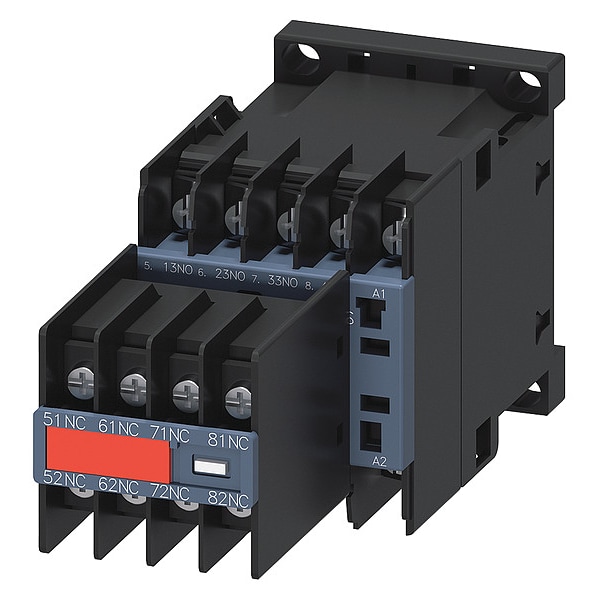

Relé de control IEC, 110V AC en bobina, 4PDT.
| Item | IEC Control Relay |
|---|---|
| Coil Volts | 110V AC |
| AC Contact Rating - Relay | 1A @ 600V, 2A @ 500V, 3A @ 400V, 6A @ 240V |
| DC Contact Rating - Relay | 10 A @ 24 V |
| Contact Form - Relay | 4PDT |
| Mounting - Relay | Surface |
| Power Consumption - Relay | 5.7 VA |
| Body Height - Relay | 2.26 in |
| Body Width - Relay | 1.77 in |
| Body Depth - Relay | 4.6 in |
| Overall Height - Relay | 2.26 in |
| Features | Surge Voltage Resistance Rated Value 6 kV |
| Standards | RoHS Compliant, WEEE (2012/19/EU) |
| Hz - Electrical | 50 Hz, 60 Hz |
| Response Time | 10 to 15 msec (Arcing Time), 4 to 15 msec (Opening Delay), 8 to 33 msec (Closing Delay) |
| Item - Relay | IEC Style Control Relay |
| Body Dimensions | 0.045 m / 0.0575 m / 0.117 m |
| Operating Temp. Range | -25°C ... 60°C |
| Contact Form | 4NC, 4NO |
| IP Rating | IP00 |
| Frequency | 50/60 Hz |
| Electrical Connection | Ring Cable Lug |
| Maximum Operating Temperature | 140 deg F |
| Frame Size | S00 |
| Input Voltage | 110/120V AC |
| Overall Height | 2.26 in |
| Coil Voltage | 110/120V AC |
| Relay Style | IEC |
| Body Width | 1.77 in |
| Body Height | 2.26 in |
| Contact Rating (DC) | 0.15 A @ 600 V, 0.3 A @ 440 V, 1 A @ 240 V, 10 A @ 24 V, 3 A @ 120 V |
| Mounting Style | DIN Rail and Surface |
| Current Rating | 10 A |
| Body Depth | 4.6 in |
| NEMA Size | Not Applicable |
| Compatible with Series | 3RH22 Control Relays |
| Power Consumption | 5.7 VA |
| Minimum Operating Temperature | -13 deg F |
| Contact Rating (AC) | 1 A @ 690V, 2 A @ 500V, 3 A @ 400V, 6 A @ 240V |
| Package Quantity | 1 |
