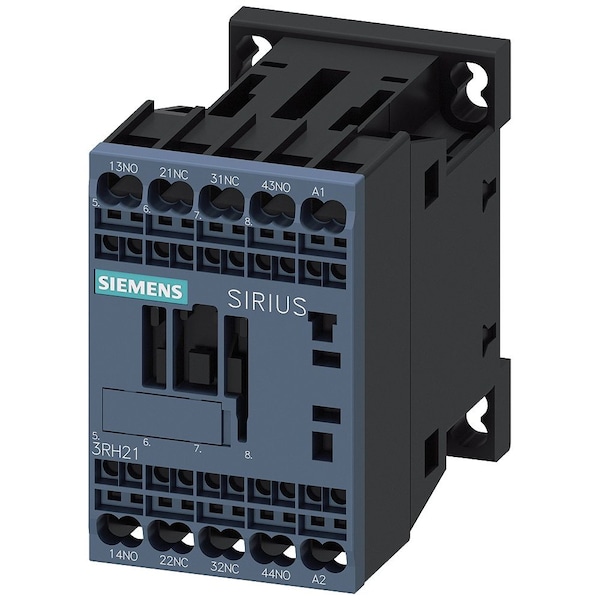

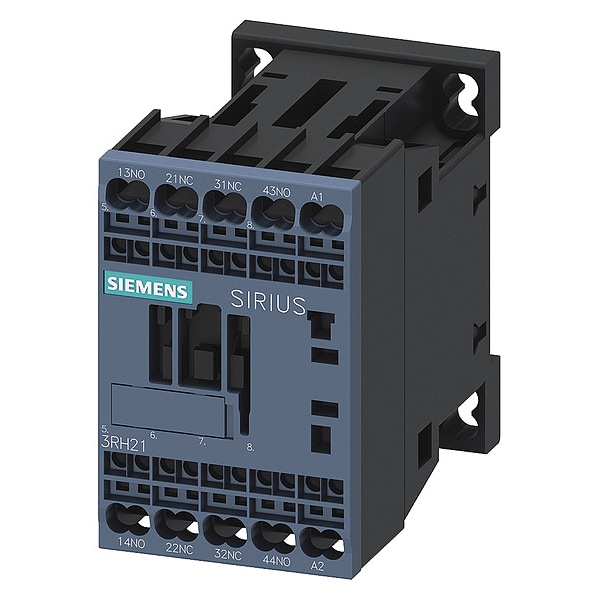

Relevador de control IEC, 2NA/2NC, 110/120VCA, 10A.
| Item - Relay | IEC Style Control Relay |
|---|---|
| Coil Volts | 110 V AC |
| AC Contact Rating - Relay | 10A @ 240V, 1A @ 600V, 2A @ 500V, 3A @ 400V |
| DC Contact Rating - Relay | 10 A @ 24 V |
| Number of Pins - Relay | 8 |
| Mounting - Relay | Surface |
| Standards | RoHS Compliant, WEEE (2012/19/EU) |
| Overall Height | 2-3/4 in |
| Electrical Connection | Spring-Type Terminal |
| Body Depth - Relay | 2.87 in |
| Input Voltage | 110/120V AC |
| Body Width - Relay | 1.77 in |
| Body Height - Relay | 2-3/4 in |
| Mounting | screw and snap-on mounting onto 35 mm standard mounting rail |
| Power Consumption - Relay | 5.7 VA |
| Contact Rating | A600, Q600 |
| Hz - Electrical | 50, 60 |
| Contact Form | 2NO/2NC |
| Overall Height - Relay | 2-3/4 in |
| Item | IEC Control Relay |
| Features | Surge Voltage Resistance Rated Value 6 kV |
| Response Time | 10 to 15 msec (Arcing Time), 4 to 15 msec (Opening Delay), 8 to 33 msec (Closing Delay) |
| Operating Temperature | -25°C ... 60°C |
| Size | 0.045 m / 0.07 m / 0.073 m |
| Type | Auxiliary contactor |
| Coil voltage | 110/120V AC |
| Operating Cycles | 30,000,000 |
| Contact configuration | 2 |
| Connection | spring-loaded terminals |
| Power Factor | 0.8 |
| Contact Rating (AC) | 1 A @ 690V, 10 A @ 240V, 2 A @ 500V, 3 A @ 400V |
| Body Depth | 2.87 in |
| Body Width | 1.77 in |
| Power Consumption | 5.7 VA |
| IP Rating | IP20 |
| Minimum Operating Temperature | -13 deg F |
| Compatible with Series | Control Relays |
| Current Rating | 10 A |
| Maximum Operating Temperature | 140 deg F |
| Mounting Style | DIN Rail and Surface |
| NEMA Size | Not Applicable |
| Number of Pins | 8 |
| Relay Style | IEC |
| Frequency | 50/60 Hz |
| Contact Rating (DC) | 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V |
| Body Height | 2-3/4 in |
| Frame Size | S00 |
| Package Quantity | 1 |
