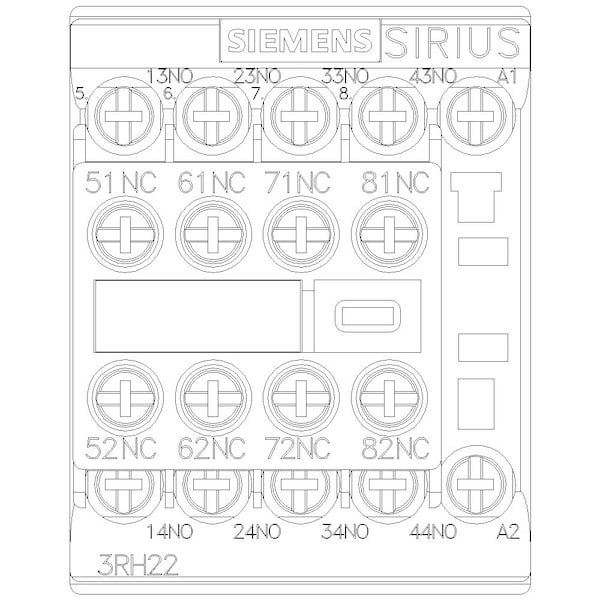

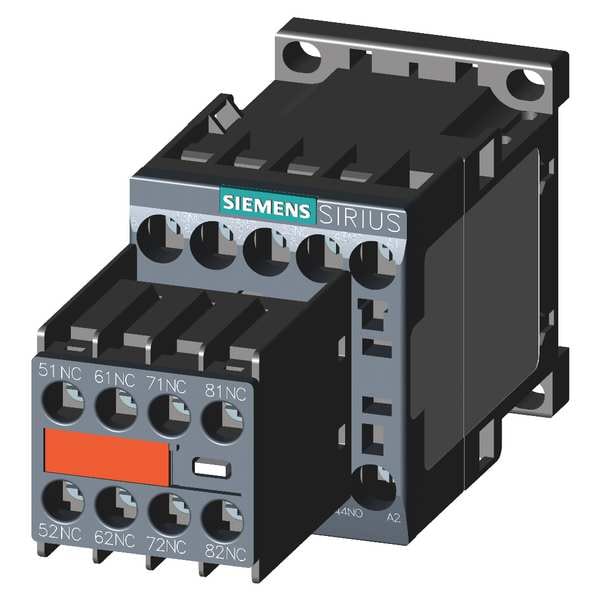

IEC ControlRelay, 4NO/4NC, 120VAC, 10A y 6A
| Item - Relay | IEC Style Control Relay |
|---|---|
| Coil Volts | 120 V AC |
| AC Contact Rating - Relay | 10A @ 230V |
| DC Contact Rating - Relay | 10 A @ 24 V |
| Number of Pins - Relay | 18 |
| Contact Form - Relay | (4) SPST-NC, (4) SPST-NO |
| Mounting - Relay | DIN Rail |
| Standards | RoHS Compliant, WEEE (2012/19/EU) |
| Response Time | 10 to 15 msec (Arcing Time), 4 to 15 msec (Opening Delay), 8 to 33 msec (Closing Delay) |
| Hz - Electrical | 50, 60 |
| Features | Permanently Mounted Auxiliary |
| Power Consumption - Relay | 5.7 VA |
| Contact Form | 4NO/4NC |
| Contact Amp Rating (Resistive) | 10 A |
| Hz | 50/60 |
| Body Height - Relay | 2.26 in |
| Contact Material | Silver Nickel |
| Coil Rating | 37VA Inrush, 5.7VA Sealed |
| Mounting | Din Rail |
| Overall Height - Relay | 2.26 in |
| Body Depth - Relay | 4.57 in |
| Item | IEC Control Relay |
| Body Width - Relay | 1.77 in |
| Size | 0.045 m / 0.0575 m / 0.117 m |
| Contact Rating | A600, Q600 |
| Type | Auxiliary contactor |
| Coil voltage | 110/120V AC |
| Operating Cycles | 10,000,000 |
| Contact configuration | 4 |
| Operating Temperature | -25°C ... 60°C |
| Connection | screw-type terminals |
| Power Factor | 0.8 |
| Body Height | 2.26 in |
| Mounting Style | DIN Rail and Surface |
| Relay Style | IEC |
| Contact Rating (AC) | 1 A @ 690V, 2 A @ 500V, 3 A @ 400V, 6 A @ 240V |
| Frame Size | S00 |
| IP Rating | IP20 |
| Body Depth | 4.57 in |
| Frequency | 50/60 Hz |
| Current Rating | 10 A |
| Contact Rating (DC) | 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V |
| Body Width | 1.77 in |
| Compatible with Series | Control Relays |
| Input Voltage | 110/120V AC |
| Number of Pins | 18 |
| Overall Height | 2.26 in |
| Maximum Operating Temperature | 140 deg F |
| Electrical Connection | Screw Terminal |
| Minimum Operating Temperature | -13 deg F |
| NEMA Size | Not Applicable |
| Power Consumption | 5.7 VA |
| Package Quantity | 1 |
