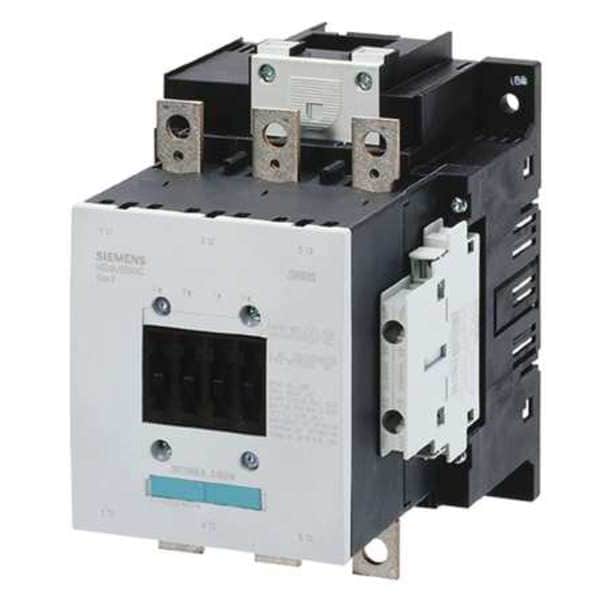

Contactador magnético IEC, 3 polos, 110 a 127 V CA/CD, 150 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 150 A |
| Full Load Amps-Resistive | 185 A |
| Action | Non-Reversing |
| Number of Poles | 3 |
| Coil Volts | 110 to 127 V AC/DC |
| Reversing | No |
| HP @ 1 Phase - 230V | 30 |
| HP @ 1 Phase - 240V | 30 hp |
| Height | 4.72 in |
| HP @ 3 Phase - 208V | 50 hp |
| Width | 4.72 in |
| Depth | 6.69 in |
| HP @ 3 Phase - 575V | 150 hp |
| HP @ 3 Phase - 240V | 60 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 125 hp |
| Aux. Contact Configuration | 2NO, 2NC |
| Hz | 50/60 |
| Includes | Permanent Mounted Aux Contact |
| Auxiliary Contact Form | 2NO/2NC |
| Frame / Series / Class / Code | S6 |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| NEMA Size | Not Applicable |
| Series | SIRIUS 3RT Safety Contactors |
| Watts Loss | 9W (Current Dependent); 5.2W (Current Independent) |
| Max. Operating Watts | 75 kW (at 400V, AC-4), 75 kW (at 400V, AC-3), 105 kW (at 400V, AC-1) |
| IP Rating | Not Applicable |
| Electrical Connection | Connecting Rail |
| Mounting Hole Distance - Height | 5.12 in |
| Overall Width | 0.47 in |
| NEMA Enclosure Rating | No Enclosure |
| Phase | Three |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Three Phase - 240V AC | 60 HP |
| Mounting Postion | Vertical |
| Overall Height | 6.77 in |
| Horsepower @ Single Phase - 240V AC | 30 HP |
| Mounting Style | Surface |
| Horsepower @ Three Phase - 600V AC | 150 HP |
| Coil Voltage | 110-127V AC/DC |
| Terminal Connection Type | Screw Terminals |
| NEMA Enclosure Material | Not Applicable |
| Embedded Surge Suppressor | No |
| Horsepower @ Three Phase - 480V AC | 125 HP |
| Mechanical Operating Durability | 10,000,000 |
| Overall Depth | 6.69 in |
| Horsepower @ Three Phase - 208V AC | 50 HP |
| Full Load Current - Resistive | 185 A |
| Mounting Hole Distance - Width | 3.94 in |
| Reversing Capability | Non-Reversing |
| Response Time | 100 to 120 msec (Closing Time - at Us min ... Us Max), 80 to 90 msec (Opening Time - at 0.8 × Us min ... 1.1 × Us Max), 80 to 90 msec (Opening Time - at Us min ... Us Max), 95 to 135 msec (Closing Time - at 0.8 × Us min ... 1.1 × Us Max) |
| Contactor Style | IEC |
| Full Load Current - Inductive | 150 A |
| Mounting Hole Diameter | 0.36 in |
| Includes Auxiliary Contacts | Yes |
| Maximum Voltage Rating | 1,000 V AC |
| Minimum Operating Temperature | -13 deg F |
| Frame Size | S6 |
| Number of Auxillary Contacts | 4 |
| Package Quantity | 1 |
