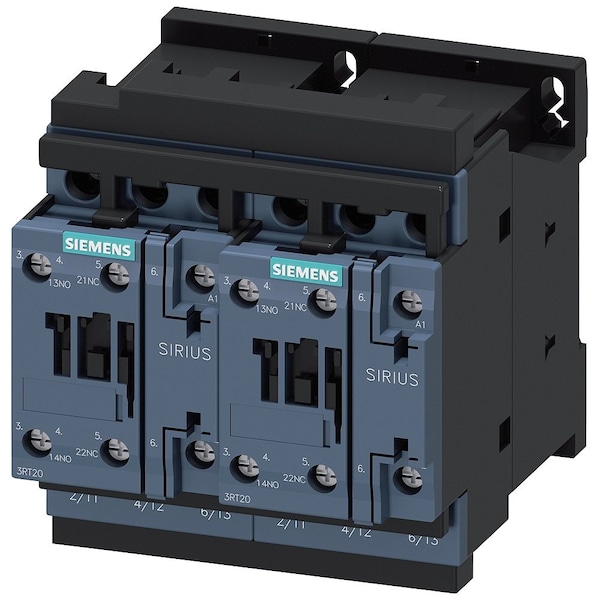

Contacto magnético IEC, 3 polos, 110/120 V CA, 25 A, Reversión: Sí.
| Full Load Amps-Inductive | 25 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Action | Reversing |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 110/120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 3.54 in |
| HP @ 1 Phase - 240V | 3 hp |
| Width | 3.54 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 575V | 20 hp |
| Depth | 3.82 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 15 hp |
| Aux. Contact Configuration | 2NO, 2NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | S0 |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Auxiliary Contact Form | 2NO |
| Includes | Mechanical Interlock |
| NEMA Size | Not Applicable |
| Series | SIRIUS 3RA23 |
| IP Rating | IP20 |
| Reversing Capability | Reversing |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Contactor Style | IEC |
| Mounting Postion | Vertical |
| NEMA Enclosure Rating | No Enclosure |
| Overall Depth | 5 in |
| Maximum Voltage Rating | 690 V AC |
| Overall Width | 4.95 in |
| Number of Normally Open Main Contacts | 3 |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Mechanical Operating Durability | 10,000,000 |
| Number of Auxillary Contacts | 3 |
| Frequency | 50/60 Hz |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Three Phase - 600V AC | 20 HP |
| Number of Normally Closed Main Contacts | 0 |
| Frame Size | S0 |
| Mounting Style | DIN Rail, Surface |
| Phase | Three |
| Embedded Surge Suppressor | No |
| Coil Voltage | 110/120V AC |
| Maximum Operating Temperature | 140 deg F |
| Full Load Current - Inductive | 25 A |
| Overall Height | 4.55 in |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Full Load Current - Resistive | 40 A |
| NEMA Enclosure Material | Not Applicable |
| Package Quantity | 1 |
