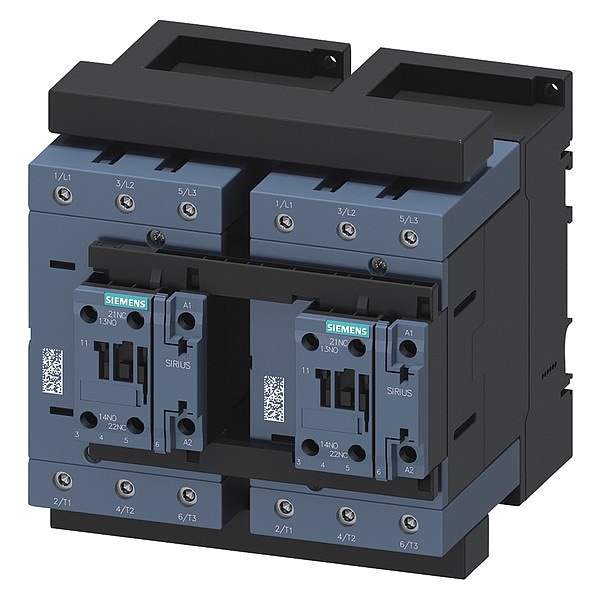

Contacto magnético IEC, 3 polos, 110/120 V CA, 95 A, Reversión: Sí.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 95 A |
| Full Load Amps-Resistive | 130 A |
| Number of Poles | 3 |
| Coil Volts | 110/120 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 7 1/2 hp |
| HP @ 1 Phase - 240V | 15 hp |
| Height | 6.3 in |
| Width | 5.91 in |
| HP @ 3 Phase - 208V | 25 hp |
| HP @ 3 Phase - 240V | 30 hp |
| Depth | 5.98 in |
| HP @ 3 Phase - 575V | 76 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 60 hp |
| Aux. Contact Configuration | 2 NC |
| Hz | 50/60 |
| Frame / Series / Class / Code | S3 |
| Standards | REACH Art 33 |
| Series | SIRIUS 3RA23 |
| Auxiliary Contact Form | 2NO |
| NEMA Size | Not Applicable |
| IP Rating | IP20 |
| Number of Auxillary Contacts | 2 |
| Overall Depth | 5.98 in |
| Minimum Operating Temperature | -13 deg F |
| Mounting Style | DIN Rail, Surface |
| Horsepower @ Single Phase - 120V AC | 7.5 HP |
| Reversing Capability | Reversing |
| Terminal Connection Type | Screw Terminals |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 600V AC | 76 HP |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Overall Width | 5.91 in |
| Mounting Postion | Vertical |
| Embedded Surge Suppressor | No |
| Mechanical Operating Durability | 10,000,000 |
| Contactor Style | IEC |
| Includes Auxiliary Contacts | Yes |
| Horsepower @ Three Phase - 480V AC | 60 HP |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Full Load Current - Inductive | 95 A |
| Coil Voltage | 110/120V AC |
| Frame Size | S3 |
| Overall Height | 6.3 in |
| NEMA Enclosure Material | Not Applicable |
| Full Load Current - Resistive | 130 A |
| Package Quantity | 1 |
