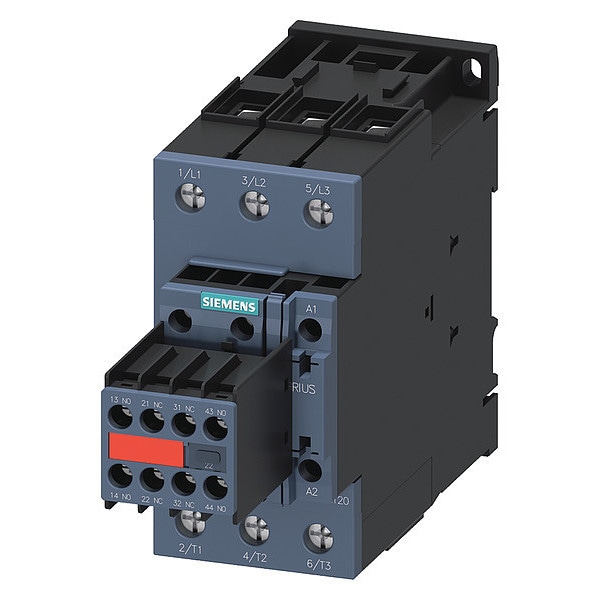

Contactador magnético de IEC, 3 polos, 24 V CC, 40 A, Reversión: No
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 40 A |
| Full Load Amps-Resistive | 60 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| HP @ 1 Phase - 120V | 3 hp |
| Height | 4.49 in |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| HP @ 3 Phase - 208V | 10 hp |
| Width | 2.17 in |
| Depth | 6.85 in |
| HP @ 3 Phase - 240V | 15 hp |
| HP @ 3 Phase - 575V | 40 hp |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 30 hp |
| Aux. Contact Configuration | 2NO, 2NC |
| Frame / Series / Class / Code | S2 |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Special Features | Varistor Surge Suppression |
| Series | SIRIUS 3RT Safety Contactors |
| Auxiliary Contact Form | 2NO/2NC |
| NEMA Size | Not Applicable |
| Electrical Connection | Screws |
| Watts Loss | 2.2W (Current Dependent); 1W (Current Independent) |
| Max. Operating Watts | 19 kW (at 400V, AC-3), 39 kW (at 400V, AC-1) |
| IP Rating | IP20 |
| Full Load Current - Resistive | 60 A |
| Includes Auxiliary Contacts | Yes |
| Number of Auxillary Contacts | 4 |
| Horsepower @ Three Phase - 600V AC | 40 HP |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Frame Size | S2 |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Maximum Voltage Rating | 690 V AC |
| Mounting Style | DIN Rail, Surface |
| Contactor Style | IEC |
| Full Load Current - Inductive | 41 A |
| NEMA Enclosure Material | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Number of Normally Open Main Contacts | 3 |
| Embedded Surge Suppressor | Yes |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Hole Diameter | 0.2 in |
| Overall Depth | 6-1/2 in |
| Overall Width | 5 in |
| Response Time | 10 to 18 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 x Us1), 10 to 18 msec (AC Operation Opening Delay Operating Times for 1.0 x Us1), 10 to 80 msec (AC Operation Closing Delay Operating Times for 0.8 ... 1.1 x Us1), 12 to 22 msec (AC Operation Closing Delay Operating Times for 1.0 x Us1) |
| NEMA Enclosure Rating | No Enclosure |
| Phase | Three |
| Terminal Connection Type | Screw Terminals |
| Mounting Hole Distance - Height | 3.84 in |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Coil Voltage | 24V DC |
| Mounting Postion | Vertical |
| Mounting Hole Distance - Width | 1.77 in |
| Overall Height | 7.85 in |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Maximum Operating Temperature | 140 deg F |
| Reversing Capability | Non-Reversing |
| Package Quantity | 1 |
