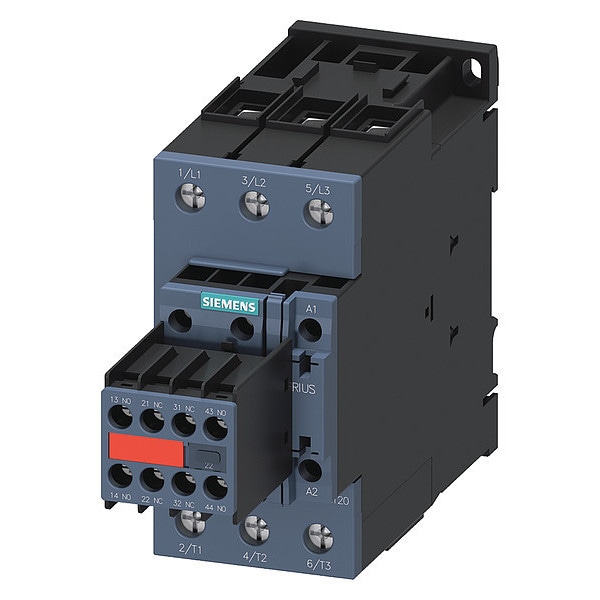

Contactador magnético IEC, 3 polos, 24 V DC, 65 A, Reversión: No.
| Full Load Amps-Inductive | 65 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 90 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| Reversing | No |
| HP @ 1 Phase - 120V | 5 hp |
| Height | 4.49 in |
| HP @ 1 Phase - 240V | 15 hp |
| Width | 2.17 in |
| HP @ 3 Phase - 208V | 20 hp |
| Depth | 6.85 in |
| HP @ 3 Phase - 575V | 60 hp |
| HP @ 3 Phase - 240V | 25 hp |
| HP @ 3 Phase - 480V | 50 hp |
| Enclosure NEMA Rating | No Enclosure |
| Aux. Contact Configuration | 2NO, 2NC |
| Special Features | Varistor Surge Suppression |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Frame / Series / Class / Code | S2 |
| Series | SIRIUS 3RT Safety Contactors |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 2NO/2NC |
| Electrical Connection | Screws |
| Max. Operating Watts | 37 kW (at 400V, AC-3), 59 kW (at 400V, AC-1) |
| Watts Loss | 5.7W (Current Dependent); 1W (Current Independent) |
| IP Rating | IP20 |
| Mounting Hole Distance - Height | 3.84 in |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Horsepower @ Single Phase - 120V AC | 5 HP |
| Frame Size | S2 |
| Terminal Connection Type | Screw Terminals |
| Embedded Surge Suppressor | Yes |
| Horsepower @ Single Phase - 240V AC | 15 HP |
| Mounting Style | DIN Rail, Surface |
| Horsepower @ Three Phase - 240V AC | 25 HP |
| Horsepower @ Three Phase - 600V AC | 60 HP |
| Full Load Current - Inductive | 80 A |
| NEMA Enclosure Rating | No Enclosure |
| Mounting Postion | Vertical |
| Contactor Style | IEC |
| Maximum Operating Temperature | 140 deg F |
| Mounting Hole Diameter | 0.2 in |
| Number of Normally Open Main Contacts | 3 |
| Overall Width | 5.15 in |
| NEMA Enclosure Material | Not Applicable |
| Overall Height | 3.15 in |
| Full Load Current - Resistive | 90 A |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Non-Reversing |
| Number of Auxillary Contacts | 4 |
| Minimum Operating Temperature | -13 deg F |
| Overall Depth | 7.32 in |
| Mounting Hole Distance - Width | 1.77 in |
| Mechanical Operating Durability | 10,000,000 |
| Maximum Voltage Rating | 690 V AC |
| Horsepower @ Three Phase - 208V AC | 20 HP |
| Coil Voltage | 24V DC |
| Package Quantity | 1 |
