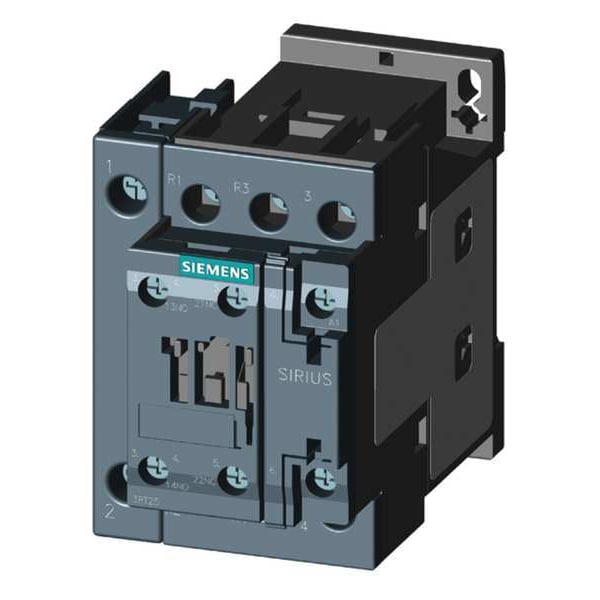

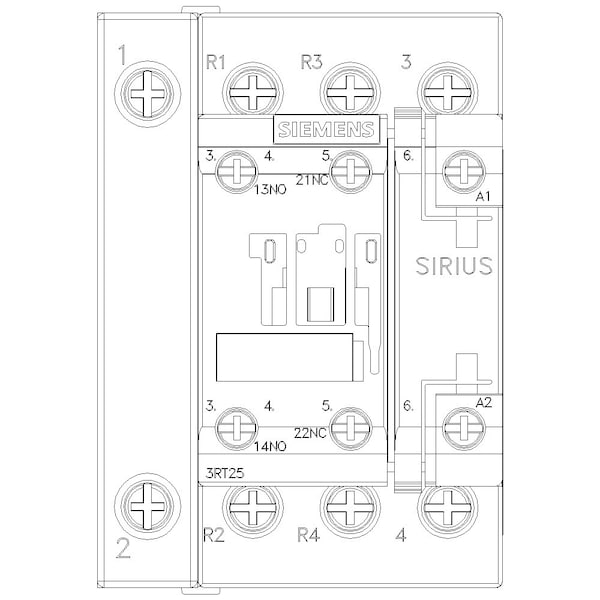

Contacto magnético de IEC, 4 polos, 24 V CA, 25 A, Reversión: No.
| Item | IEC Magnetic Contactor |
|---|---|
| Full Load Amps-Inductive | 25 A |
| Action | Non-Reversing |
| Full Load Amps-Resistive | 35 A |
| Number of Poles | 4 |
| Coil Volts | 24 V AC |
| Reversing | No |
| HP @ 1 Phase - 230V | 3 |
| HP @ 1 Phase - 120V | 2 hp |
| Height | 2.36 in |
| HP @ 1 Phase - 240V | 3 hp |
| Width | 2.36 in |
| HP @ 3 Phase - 240V | 7 1/2 hp |
| Depth | 3.82 in |
| Enclosure NEMA Rating | No Enclosure |
| HP @ 3 Phase - 480V | 15 hp |
| Aux. Contact Configuration | 1NO, 1NC |
| Hz | 50/60 |
| Includes | S0 Frame |
| Frame / Series / Class / Code | S0 |
| Special Features | Main Contact Configuration 2NC/2NO |
| Auxiliary Contact Form | 1NO/1NC |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| NEMA Size | Not Applicable |
| Series | SIRIUS 3RT25 |
| Max. Operating Watts | 26 kW (at 400V, AC-4), 11 kW (at 400V, AC-3), 26 kW (at 400V, AC-1) |
| Electrical Connection | Screws |
| IP Rating | IP20 |
| Mechanical Operating Durability | 10,000,000 |
| Embedded Surge Suppressor | No |
| Mounting Hole Distance - Height | 2.95 in |
| Terminal Connection Type | Screw Terminals |
| Overall Depth | 3.65 in |
| Mounting Postion | Vertical |
| Reversing Capability | Non-Reversing |
| Contactor Style | IEC |
| Frame Size | S0 |
| Overall Width | 3.05 in |
| Full Load Current - Inductive | 25 A |
| Phase | 3 |
| Number of Auxillary Contacts | 2 |
| Overall Height | 5.1 in |
| Coil Voltage | 24V AC |
| Maximum Operating Temperature | 140 deg F |
| Mounting Style | DIN Rail, Surface |
| Minimum Operating Temperature | -13 deg F |
| Mounting Hole Diameter | 0.19 in |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Number of Normally Closed Main Contacts | 2 |
| Includes Auxiliary Contacts | Yes |
| NEMA Enclosure Rating | No Enclosure |
| NEMA Enclosure Material | Not Applicable |
| Full Load Current - Resistive | 40 A |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Horsepower @ Three Phase - 480V AC | 15 HP |
| Number of Normally Open Main Contacts | 2 |
| Horsepower @ Single Phase - 240V AC | 3 HP |
| Mounting Hole Distance - Width | 1.38 in |
| Frequency | 50/60 Hz |
| Package Quantity | 1 |
