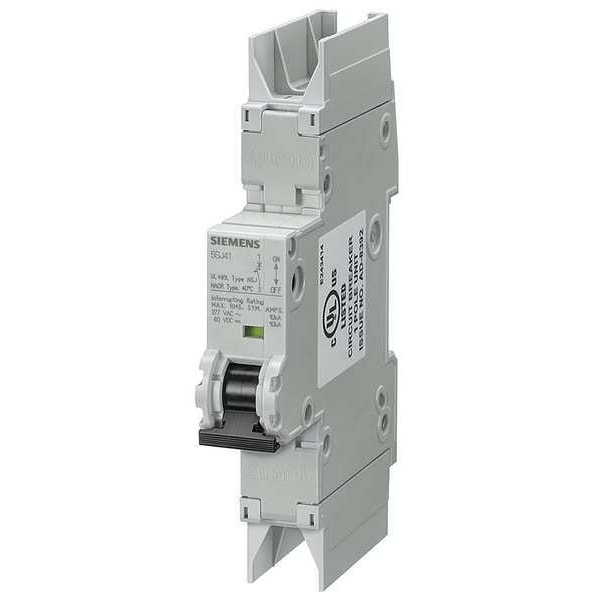

IEC Miniature Circuit Breaker, 5SJ4 Series, 1A, 1 Pole, 277V AC, 10kA at 277V AC, D Curve
| Item | IEC Miniature Circuit Breaker |
|---|---|
| Series | 5SJ4 |
| Amps | 1A |
| Number of Poles | 1 |
| AC Voltage Rating | 277V AC |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 277V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 63A / 5SJ4 |
| Width | 0.71 in |
| Depth | 2-3/4 in |
| Height | 4.76 in |
| DC Voltage Rating | 60V DC |
| Curve Type | D |
| Standards | CSA C22.2 No. 5-02, EN 60898, EN 60947-2, UL 489 |
| Min. Wire Size | 14 AWG |
| Max. Wire Size | 4 AWG |
| Application | Industrial |
| Housing Material | Thermoplastic |
| Meets UL Type | UL 489 |
| Min. Operating Temp. | -13 deg F |
| Max. Operating Temp. | 113 deg F |
| Length (Straight Wireway) | 4.76 in |
| Mounting | Din Rail |
| Length | 4.76 in |
| Package Quantity | 1 |
