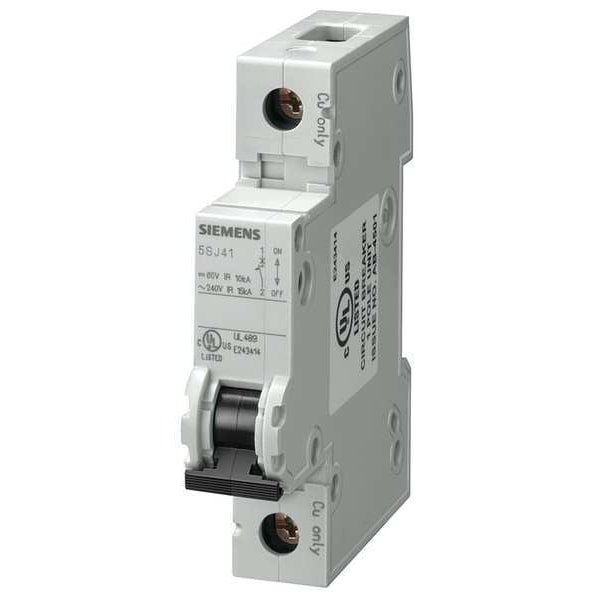

IEC Miniature Circuit Breaker, 5SJ4 Series, 5A, 1 Pole, 240V AC, 14kA at 240V AC, D Curve
| Item | IEC Miniature Circuit Breaker |
|---|---|
| Series | 5SJ4 |
| Amps | 5A |
| Number of Poles | 1 |
| AC Voltage Rating | 240V AC |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 14kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 63A / 5SJ4 |
| Width | 0.71 in |
| Depth | 2-3/4 in |
| Height | 3.54 in |
| DC Voltage Rating | 60V DC |
| Curve Type | D |
| Min. Wire Size | 14 AWG |
| Standards | CE, CSA C22.2 No. 5-02, cULus, EN 60898, EN 60947-2, UL 489, UL File No. E243414 |
| Max. Wire Size | 4 AWG |
| Application | Branch Circuit Protection, Industrial, Reverse Feed |
| Housing Material | Thermoplastic |
| Min. Operating Temp. | -13 deg F |
| Max. Operating Temp. | 113 deg F |
| Meets UL Type | UL 489 |
| Length (Straight Wireway) | 3.54 in |
| Mounting | Din Rail |
| Length | 3.54 in |
| Package Quantity | 1 |
