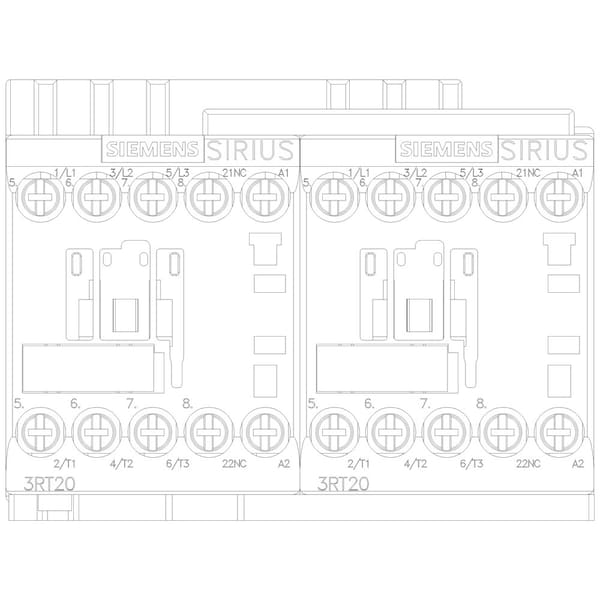

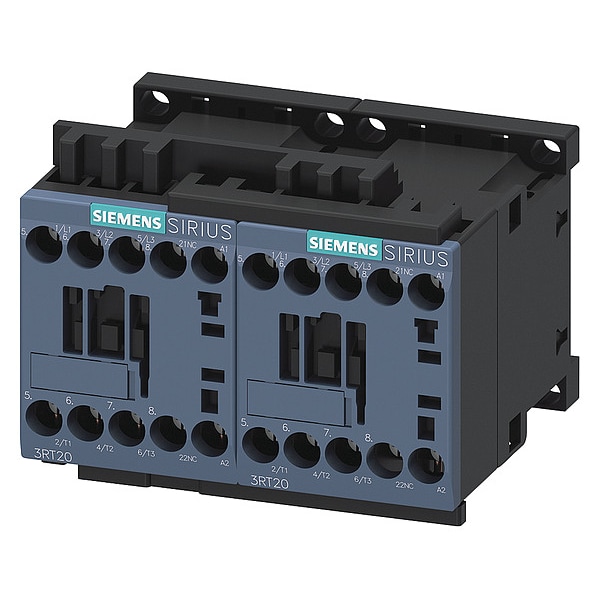

Contactador de potencia IEC, Reversible, 24VCA.
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | IEC Power Contactor |
| Full Load Amps-Resistive | 18 A |
| Number of Poles | 3 |
| Coil Volts | 24 V AC |
| Reversing | Yes |
| HP @ 1 Phase - 120V | 1/3 hp |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 68 mm |
| Width | 90 mm |
| HP @ 3 Phase - 208V | 2 hp |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| Depth | 73 mm |
| HP @ 3 Phase - 480V | 5 hp |
| Hz | 50/60 |
| Frame / Series / Class / Code | S00 |
| NEMA Size | Not Applicable |
| Auxiliary Contact Form | 3NO |
| Series | SIRIUS 3RA23 |
| Aux. Contact Configuration | 3 NO |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Horsepower @ Three Phase - 600V AC | 7.5 HP |
| Frequency | 50/60 Hz |
| Overall Depth | 3-3/4 in |
| Mounting Style | DIN Rail, Surface |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Maximum Operating Temperature | 140 deg F |
| Number of Normally Open Main Contacts | 3 |
| Includes Auxiliary Contacts | Yes |
| Reversing Capability | Reversing |
| Embedded Surge Suppressor | No |
| Coil Voltage | 24V AC |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Phase | Three |
| Number of Normally Closed Main Contacts | 0 |
| Minimum Operating Temperature | -13 deg F |
| Contactor Style | IEC |
| NEMA Enclosure Rating | No Enclosure |
| IP Rating | IP20 |
| Maximum Voltage Rating | 690 V AC |
| Full Load Current - Resistive | 18 A |
| Mounting Postion | Vertical |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Overall Height | 3-1/4 in |
| Frame Size | S00 |
| Number of Auxillary Contacts | 3 |
| Horsepower @ Single Phase - 120V AC | 0.3333 HP |
| Overall Width | 3.05 in |
| Mechanical Operating Durability | 10,000,000 |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Full Load Current - Inductive | 9 A |
| Terminal Connection Type | Screw Terminals |
| Package Quantity | 1 |
