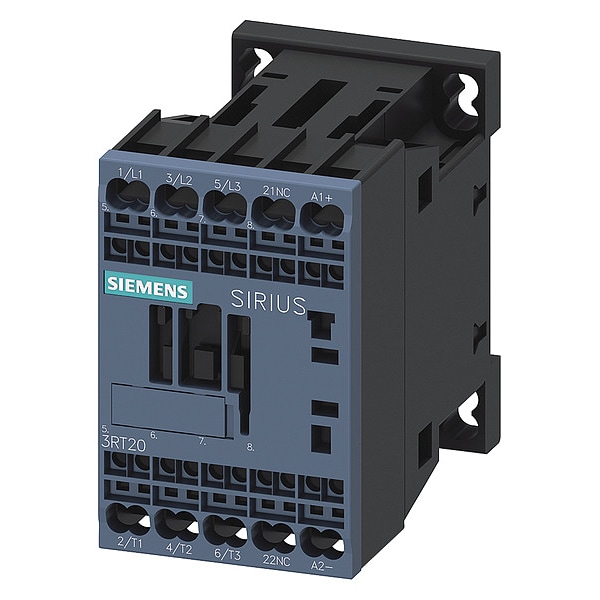

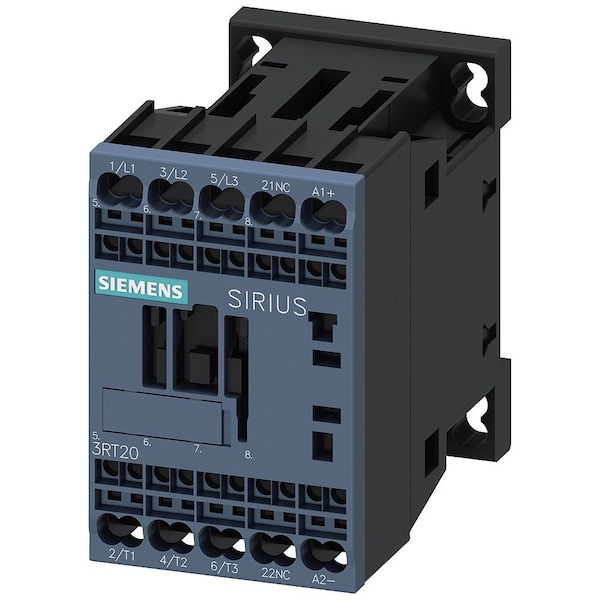

Contactador de energía IEC, no reversible, 24VDC
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | IEC Power Contactor |
| Full Load Amps-Resistive | 22 A |
| Number of Poles | 3 |
| Coil Volts | 24 V DC |
| HP @ 1 Phase - 120V | 1/3 hp |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 70 mm |
| Width | 45 mm |
| HP @ 3 Phase - 208V | 2 hp |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| Depth | 73 mm |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 480V | 5 hp |
| Series | SIRIUS 3RT20 |
| NEMA Size | Not Applicable |
| Aux. Contact Configuration | 1NC |
| Frame / Series / Class / Code | S00 |
| Auxiliary Contact Form | 1NC |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Rated current [In] for the power loss specification | 9 ampere |
| Rated operating power with AC-3, 400 V | 4 kW |
| Power loss per pole, current-dependent [PlIp] | 0.3 W |
| suitable for series installation | Yes |
| Power loss, static, current-independent [Pls] | 4 W |
| min. rated control voltage Us with DC | 24 V |
| Number of making contacts and main contacts | 3 |
| Rated operating current Ie with AC-3, 400 V | 9 ampere |
| rated operational power AC-1 at 400 V | 13 kilowatt |
| Connection type | Spring pulley connection |
| Number of Auxillary Contacts | 1 |
| Mounting Style | DIN Rail, Surface |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Overall Depth | 2.92 in |
| Contactor Style | IEC |
| Overall Width | 1.97 in |
| Terminal Connection Type | Spring Loaded Terminals |
| IP Rating | IP20 |
| Response Time | 10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17.5 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay) |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Distance - Width | 1.38 in |
| Full Load Current - Inductive | 9 A |
| Minimum Operating Temperature | -13 deg F |
| Coil Voltage | 24V DC |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Horsepower @ Single Phase - 120V AC | 0.3333 HP |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Full Load Current - Resistive | 22 A |
| Maximum Voltage Rating | 690 V AC |
| Phase | Three |
| Mounting Hole Distance - Height | 1.97 in |
| Number of Normally Open Main Contacts | 3 |
| Mechanical Operating Durability | 30,000,000 |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Reversing Capability | Non-Reversing |
| Mounting Postion | Vertical |
| Frame Size | S00 |
| NEMA Enclosure Rating | No Enclosure |
| Embedded Surge Suppressor | Yes |
| Mounting Hole Diameter | 0.2 in |
| Overall Height | 3.08 in |
| Horsepower @ Three Phase - 600V AC | 7.5 HP |
| Package Quantity | 1 |
