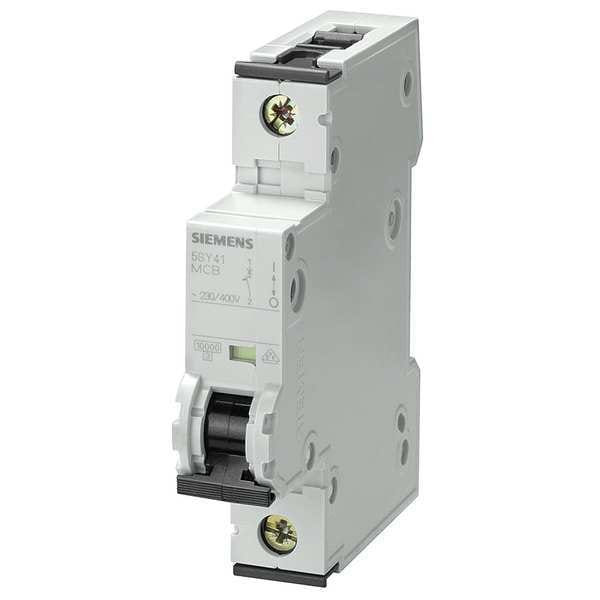

IEC Supplementary Protector, 5SY4 Series, 4A, 1 Pole, 230/400V AC, 10kA at 230/400V AC, C Curve
| Item | IEC Supplementary Protector |
|---|---|
| Series | 5SY4 |
| Amps | 4A |
| Number of Poles | 1 |
| AC Voltage Rating | 230/400V AC |
| Phase | 1 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | DIN Rail |
| Max. AIR Rating | 10kA at 230/400V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Screw Clamp |
| Frame Size | 1 |
| Width | 0.69 in |
| Depth | 3.01 in |
| Height | 3.54 in |
| DC Voltage Rating | 72V DC |
| Curve Type | C |
| Max. Wire Size | 4 AWG |
| Application | Industrial |
| Standards | CE, CSA C22.2 No. 235, cURus, EN 60898, EN 60947-2, UL 1077, UL File No. E116386 |
| Min. Wire Size | 14 AWG |
| Features | Quick Assembly System |
| Housing Material | Thermoplastic |
| Meets UL Type | UL 1077 |
| Length (Straight Wireway) | 3.54 in |
| Length | 3.54 in |
| Mounting | Din Rail |
| Package Quantity | 1 |
