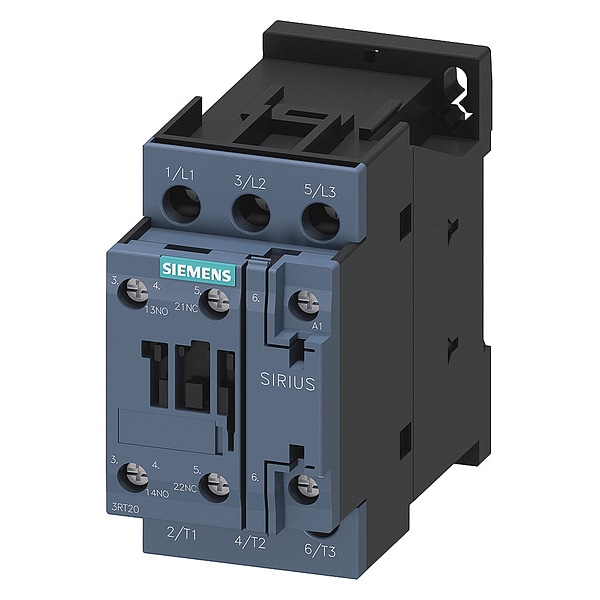

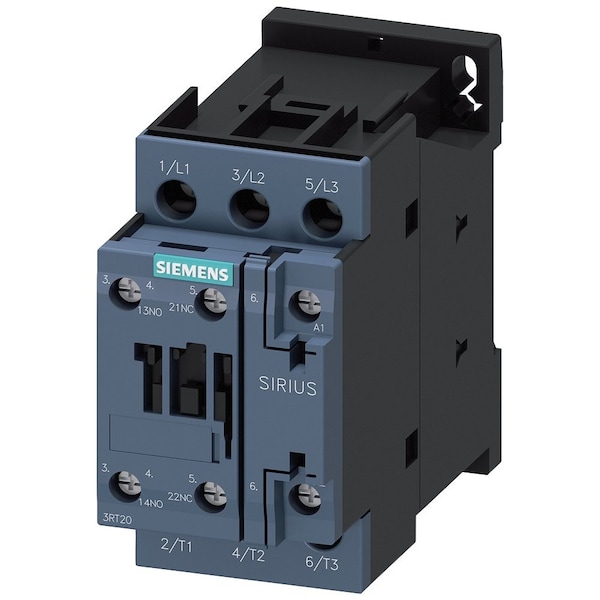

Contacto magnético IEC, no reversible, 110VCA.
| Full Load Amps-Inductive | 32 A |
|---|---|
| Item | IEC Magnetic Contactor |
| Full Load Amps-Resistive | 50 A |
| Number of Poles | 3 |
| Coil Volts | 110 V AC |
| HP @ 1 Phase - 120V | 2 hp |
| HP @ 1 Phase - 240V | 5 hp |
| Height | 85 mm |
| Width | 45 mm |
| HP @ 3 Phase - 208V | 10 hp |
| Depth | 97 mm |
| HP @ 3 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 25 hp |
| HP @ 3 Phase - 480V | 20 hp |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| Auxiliary Contact Form | 1NO/1NC |
| Aux. Contact Configuration | 1NO/1NC |
| Hz | 50 |
| NEMA Size | Not Applicable |
| Series | SIRIUS 3RT20 |
| Frame / Series / Class / Code | S0 |
| Connection type | Screw connection |
| Max. rated AC voltage for controls, 50 Hz | 110 V |
| Number of making contacts and main contacts | 3 |
| suitable for series installation | Yes |
| Rated operating power with AC-3, 400 V | 15 kilowatt |
| rated operational power AC-1 at 400 V | 28 kilowatt |
| Power loss, static, current-independent [Pls] | 9.8 W |
| Rated operating current Ie with AC-3, 400 V | 32 ampere |
| Rated current [In] for the power loss specification | 32 ampere |
| Power loss per pole, current-dependent [PlIp] | 2.3 W |
| Reversing Capability | Non-Reversing |
| IP Rating | IP20 |
| Response Time | 4 to 16 msec (Opening Delay at AC), 8 to 40 msec (Closing Delay at AC) |
| Horsepower @ Three Phase - 480V AC | 20 HP |
| Mechanical Operating Durability | 10,000,000 |
| Mounting Style | DIN Rail, Surface |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Three Phase - 208V AC | 10 HP |
| Horsepower @ Single Phase - 240V AC | 5 HP |
| Full Load Current - Inductive | 32 A |
| Maximum Voltage Rating | 690 V AC |
| Overall Depth | 3.63 in |
| Mounting Postion | Vertical |
| Mounting Hole Distance - Width | 1.38 in |
| Terminal Connection Type | Screw Terminals |
| Minimum Operating Temperature | -13 deg F |
| Overall Width | 2.13 in |
| Frame Size | S0 |
| Horsepower @ Three Phase - 600V AC | 25 HP |
| Mounting Hole Distance - Height | 2.36 in |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Single Phase - 120V AC | 2 HP |
| Number of Normally Open Main Contacts | 3 |
| Mounting Hole Diameter | 0.19 in |
| Frequency | 50 Hz |
| Contactor Style | IEC |
| Overall Height | 4.18 in |
| NEMA Enclosure Rating | No Enclosure |
| Full Load Current - Resistive | 50 A |
| Horsepower @ Three Phase - 240V AC | 10 HP |
| Embedded Surge Suppressor | No |
| Phase | Three |
| Includes Auxiliary Contacts | Yes |
| Coil Voltage | 110V AC |
| Package Quantity | 1 |
