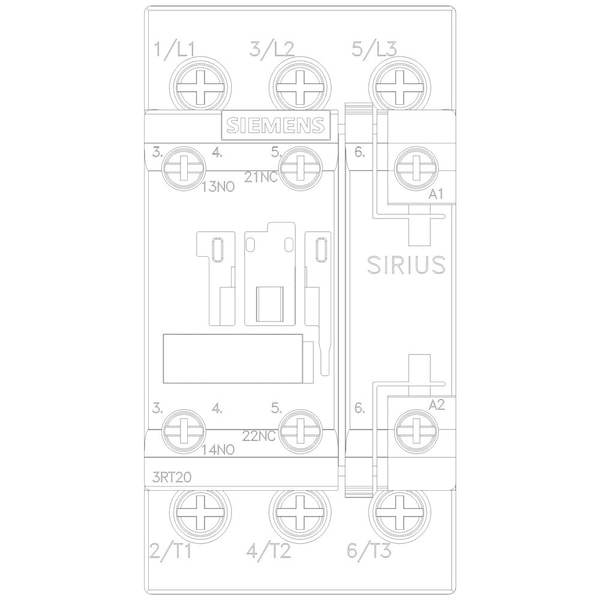

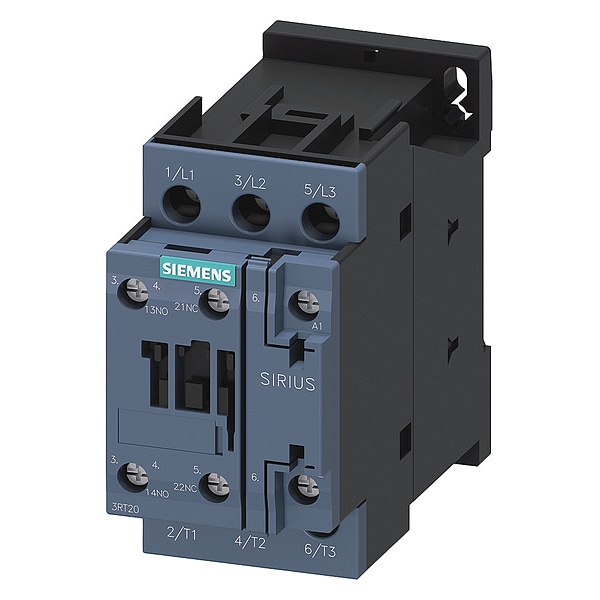

Contactor de Potencia de IECPower, No Reversible, 110VCA
| Full Load Amps-Inductive | 9 A |
|---|---|
| Item | IEC Power Contactor |
| Full Load Amps-Resistive | 40 A |
| Number of Poles | 3 |
| Coil Volts | 110 V AC |
| HP @ 1 Phase - 120V | 1 hp |
| HP @ 1 Phase - 240V | 1 hp |
| Height | 85 mm |
| HP @ 3 Phase - 208V | 2 hp |
| Width | 45 mm |
| Depth | 97 mm |
| HP @ 3 Phase - 240V | 3 hp |
| HP @ 3 Phase - 575V | 7 1/2 hp |
| HP @ 3 Phase - 480V | 5 hp |
| Standards | REACH Art 33, WEEE (2012/19/EU) |
| NEMA Size | Not Applicable |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contact Form | 1NO/1NC |
| Hz | 50/60 |
| Series | SIRIUS 3RT20 |
| Frame / Series / Class / Code | S0 |
| Rated operating current Ie with AC-3, 400 V | 9 ampere |
| Max. rated AC voltage for controls, 50 Hz | 110 V |
| Power loss, static, current-independent [Pls] | 7.9 W |
| rated operational power AC-1 at 400 V | 23 kilowatt |
| Power loss per pole, current-dependent [PlIp] | 0.2 W |
| Number of making contacts and main contacts | 3 |
| Connection type | Screw connection |
| Rated current [In] for the power loss specification | 9 ampere |
| max. rated AC voltage for controls (60 Hz) | 110 V |
| suitable for series installation | Yes |
| Rated operating power with AC-3, 400 V | 4 kW |
| Frame Size | S0 |
| Mounting Style | DIN Rail, Surface |
| Maximum Operating Temperature | 140 deg F |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Contactor Style | IEC |
| Mechanical Operating Durability | 10,000,000 |
| Includes Auxiliary Contacts | Yes |
| NEMA Enclosure Rating | No Enclosure |
| Frequency | 50/60 Hz |
| Number of Normally Open Main Contacts | 3 |
| Embedded Surge Suppressor | No |
| Overall Depth | 3.63 in |
| Full Load Current - Inductive | 9 A |
| Reversing Capability | Non-Reversing |
| Response Time | 10 to 18 msec (AC Operation Closing Delay Operation Opening Delay Operating Times for 1.0 x Us1), 15 to 17.5 msec (DC Operation Opening Delay Operating Times For 0.8 ... 1.1 X Us1), 16 to 17 msec (DC Operation Opening Delay Operating Times for 1.0 x Us), 4 to 16 msec (AC Operation Opening Delay Operating Times for 0.8 ... 1.1 X Us1), 4 to 16 msec (AC Operation Opening Delay Operating Times for 1.0 x Us), 50 to 170 msec (DC Operation Closing Delay Operating Times for 0.8 ... 1.1 X Us1), 55 to 80 msec (DC Operation Closing Delay Operating Times for 1.0 x Us), 9 to 38 msec (AC Operation Closing Delay) |
| IP Rating | IP20 |
| Number of Auxillary Contacts | 2 |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Coil Voltage | 110V AC |
| Mounting Postion | Vertical |
| Overall Height | 4.18 in |
| Mounting Hole Diameter | 0.19 in |
| Mounting Hole Distance - Width | 1.38 in |
| Horsepower @ Three Phase - 208V AC | 2 HP |
| Horsepower @ Three Phase - 600V AC | 7.5 HP |
| Maximum Voltage Rating | 690 V AC |
| Overall Width | 2.13 in |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Phase | Three |
| Mounting Hole Distance - Height | 2.36 in |
| Terminal Connection Type | Screw Terminals |
| Minimum Operating Temperature | -13 deg F |
| Horsepower @ Single Phase - 240V AC | 1 HP |
| Full Load Current - Resistive | 40 A |
| Package Quantity | 1 |
