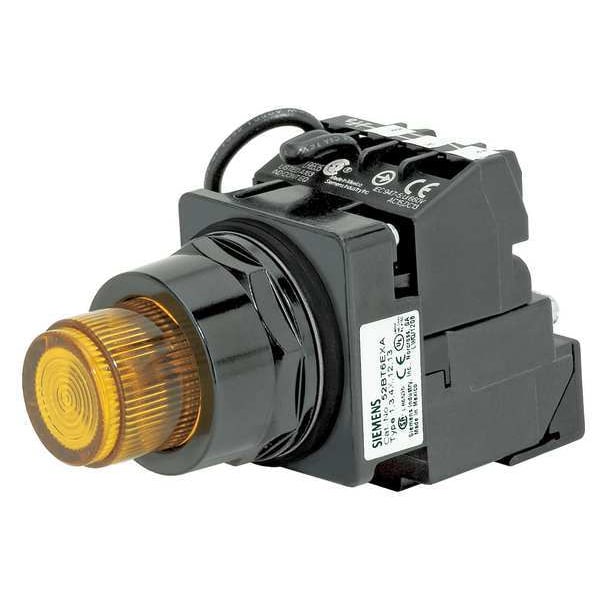

Botón pulsador iluminado, 30 mm, 1 contacto normalmente abierto/1 contacto normalmente cerrado, ámbar.
| Action | Momentary |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| Lamp Voltage | 6V AC |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Lamp Type | Incandescent |
| Type of Operator | Round Button |
| Contact Form | 1NO/1NC |
| Color | Amber |
| Bezel | Epoxy Coated Zinc Die Cast |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Contact Rating | 10A @ 600V AC |
| Item | Illuminated Push Button |
| Bezel Material | Epoxy Coated Metal |
| NEMA Contact Rating Designation | A600, P600 |
| Voltage | 480V AC |
| Lamp Module Type | Transformer |
| Terminal Connection | Screw |
| Replacement Lamp | Mfr. No. 52AABN |
| Lamp Module Voltage | 480 V AC |
| Basic Material | Epoxy |
| Contact Type | 1NO-1NC |
| Standards | CSA, REACH, UL Listed |
| IP Rating | IP20, IP66 |
| Features | Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals |
| DC Contact Rating | Not Rated |
| Series | 52 |
| AC Contact Rating | 10 A @ 600 V |
| Product Type | Push Button Operators |
| Head Color | Amber |
| Mechanical Operating Durability | 3.00 x 10^5 |
| Lamp Voltage - Maximum | 480 V AC |
| Panel Cutout Diameter | 30 mm |
| Number of Indicator Lights | 0 |
| Operating Temperature - Minimum | 31 deg F |
| Operator Illumination | Illuminated |
| Legend Color | Not Applicable |
| Operator Material | Epoxy Coated Metal |
| Manufacturer Warranty Length | 1 yr |
| Operator Voltage Rating - Maximum | 600 V AC |
| Operating Temperature - Maximum | 158 deg F |
| Mushroom Head Diameter | Not Applicable |
| Overall Height | 4.24 in |
| Push Button Style | Extended |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
| Maintained Action Release | Not Applicable |
| Overall Width | 2.15 in |
| Resistance Properties | Corrosion Resistant |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R |
| Legend Background Color | Not Applicable |
| Package Quantity | 1 |
