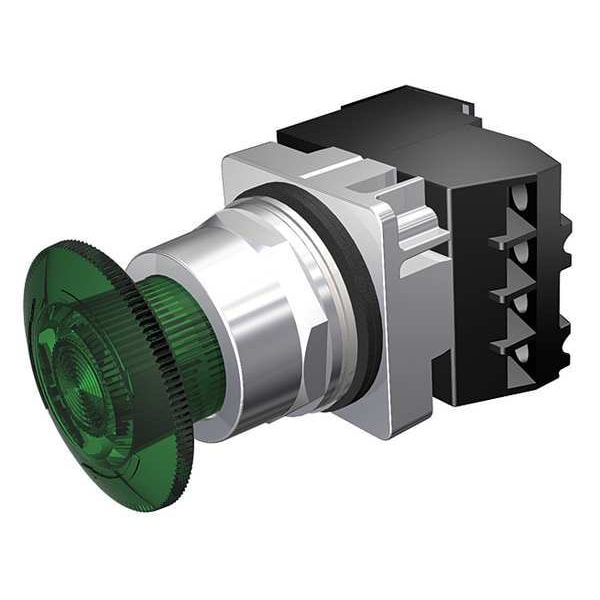

Botón pulsador iluminado, 30 mm, 1 contacto normalmente abierto (NO)/1 contacto normalmente cerrado (NC), color verde.
| Action | Maintained |
|---|---|
| Size | 30 mm |
| Head Material | Plastic |
| NEMA Rating | 1, 12, 13, 3, 3R, 4, 4X |
| Lamp Voltage | 24V AC/DC |
| Lamp Type | Incandescent |
| Type of Operator | 45mm Mushroom Head |
| Color | Green |
| Contact Form | 1NO/1NC |
| Bezel | Chrome Plated Zinc Die Cast |
| Legend | Not Applicable |
| Number of Operators | 1 |
| Contact Rating | 10A @ 600V AC |
| Item | Mushroom Head Push Button |
| Bezel Material | Chrome |
| Replacement Lamp | Mfr. No. 52AADN |
| Terminal Connection | Screw |
| Contact Type | 1NO/1NC |
| Basic Material | Metal |
| NEMA Contact Rating Designation | A600, P600 |
| Voltage | 24V AC/DC |
| Lamp Module Type | Full Voltage |
| Standards | CSA, REACH, UL Listed |
| Lamp Module Voltage | 24V AC/DC |
| IP Rating | IP20, IP66 |
| AC Contact Rating | 10 A @ 600 V |
| Features | Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals |
| DC Contact Rating | Not Rated |
| Series | 52 |
| Product Type | Push Button Operators |
| Operator Voltage Rating - Maximum | 600 V AC |
| Overall Width | 2.15 in |
| Operator Illumination | Illuminated |
| Push Button Style | Mushroom Head |
| Head Color | Green |
| Number of Indicator Lights | 0 |
| Mushroom Head Diameter | 45.47 mm |
| Lamp Voltage - Maximum | 24 V AC/DC |
| Overall Height | 4 in |
| Operating Temperature - Minimum | 31 deg F |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R |
| Mechanical Operating Durability | 3.00 x 10^5 |
| Legend Background Color | Not Applicable |
| Resistance Properties | Oil and Grease Resistant, Watertight |
| Maintained Action Release | Twist |
| Operating Temperature - Maximum | 158 deg F |
| Hazardous Location Specification | Class I, Div 2, Group A, B, C, D |
| Legend Color | Not Applicable |
| Panel Cutout Diameter | 30 mm |
| Operator Material | Metal |
| Manufacturer Warranty Length | 1 yr |
| Package Quantity | 1 |
