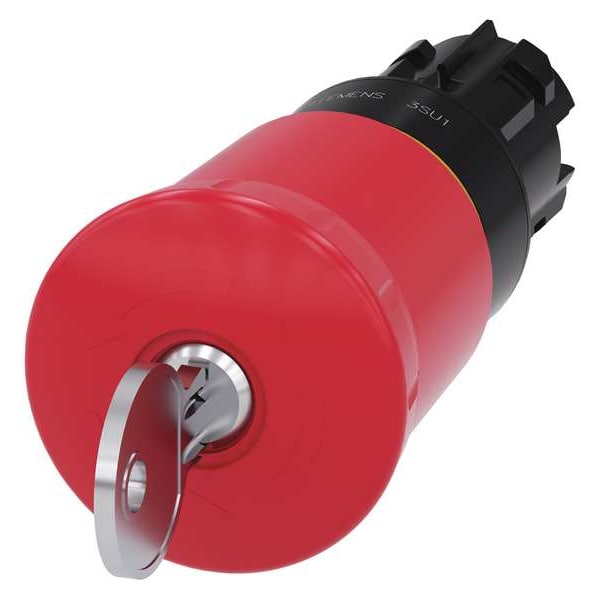

Operador de botón iluminado, 22 mm, Rojo
| Item | Mushroom Head Push Button |
|---|---|
| Basic Material | Plastic |
| Features | Low Voltage |
| Legend | Not Applicable |
| Type of Operator | 40mm Mushroom Head |
| Lamp Voltage | Dependent on Module Used |
| Lamp Type | Not Applicable |
| Color | Red |
| Number of Operators | 1 |
| NEMA Rating | 1, 12, 2, 3, 3R, 4, 4X |
| Series | 3SU |
| Bezel | Polyamide |
| Size | 22 mm |
| Standards | REACH, RoHS, WEEE (2012/19/EU) |
| Action | Maintained |
| Head Material | Plastic |
| Bezel Material | Polyamide |
| Lamp Module Voltage | Module Not Included |
| IP Rating | IP66, IP67, IP69, IP69K |
| Replacement Lamp | Module Not Included |
| Lamp Module Type | Not Applicable |
| Terminal Connection | Not Applicable |
| Legend Color | Not Applicable |
| With front ring | No |
| Colour button | Red |
| Construction type lens | Round |
| Spring-return | No |
| Suitable for illumination | No |
| Suitable for emergency stop | Yes |
| Switching function latching | No |
| Degree of protection (IP) | IP67/IP69K |
| Unlocking method | Key-release |
| Operator Material | Plastic |
| Overall Width | 1.16 in |
| Push Button Style | Mushroom Head |
| Overall Depth | 1.39 in |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Panel Cutout Diameter | 22 mm |
| Hazardous Location Specification | Not Rated |
| Lamp Voltage - Maximum | Not Applicable |
| Operator Illumination | Non-Illuminated |
| Mushroom Head Diameter | 22 mm |
| Maintained Action Release | Key |
| Overall Height | 1.16 in |
| Product Type | Push Button Operators |
| Operating Temperature - Minimum | -13 deg F |
| Operating Temperature - Maximum | 158 deg F |
| Number of Indicator Lights | 0 |
| Head Color | Red |
| Legend Background Color | Not Applicable |
| Package Quantity | 1 |
