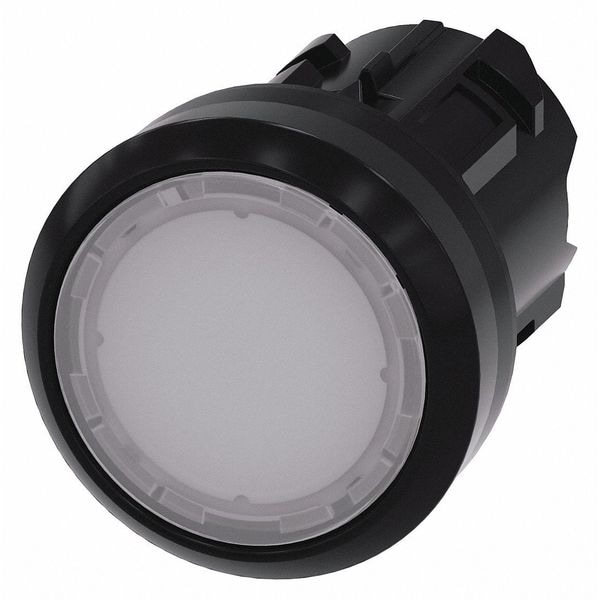

Operador de botón pulsador iluminado, 22 mm, blanco.
| Item | Flush Push Button |
|---|---|
| Basic Material | Plastic |
| Features | Low Voltage |
| Legend | Not Applicable |
| Lamp Voltage | Dependent on Module Used |
| Type of Operator | Flush Button |
| Lamp Type | No Lamp Module Included |
| Color | White |
| Number of Operators | 1 |
| NEMA Rating | 1, 12, 2, 3, 3R, 4, 4X |
| Series | 3SU |
| Size | 22 mm |
| Bezel | Polyamide |
| Standards | REACH, RoHS, WEEE (2012/19/EU) |
| Head Material | Plastic |
| Action | Momentary |
| Bezel Material | Plastic |
| IP Rating | IP66, IP67, IP69, IP69K |
| Lamp Module Type | No Lamp Module Included |
| Lamp Module Voltage | Module Not Included |
| Replacement Lamp | Module Not Included |
| Terminal Connection | Not Applicable |
| Legend Color | Not Applicable |
| NEMA Enclosure Rating | 4, 12, 13, 3, 4X, 1, 3R, 2 |
| Overall Width | 1.16 in |
| Legend Background Color | Not Applicable |
| Mushroom Head Diameter | Not Applicable |
| Operator Material | Plastic |
| Overall Height | 1.16 in |
| Panel Cutout Diameter | 22 mm |
| Operating Temperature - Maximum | 158 deg F |
| Lamp Voltage - Maximum | Not Applicable |
| Operating Temperature - Minimum | -13 deg F |
| Operator Illumination | Illuminated |
| Product Type | Push Button Operators |
| Maintained Action Release | Not Applicable |
| Head Color | White |
| Overall Depth | 1.39 in |
| Number of Indicator Lights | 1 |
| Hazardous Location Specification | Not Rated |
| Push Button Style | Flush |
| Package Quantity | 1 |
