Industrial Ethernet FC TP Marine Cable,
| Item | Ethernet Cable |
|---|---|
| Cable Length | 279 ft |
| Standards | RoHS Compliant Directive (2011/65/EU) |
| Category - Data Cable | 5e |
| Temp. Range | -13 to 158 deg F |
| Item - Data Cable | Communication Cable |
| Number of Conductors | 4 |
| Fire Rating - Data Cable | Not Rated |
| Insulation Material | Plastic |
| Jacket Color | Green |
| Shielding Material | Aluminum-Clad Foil |
| Conductor Size - Data Cable | 22 AWG |
| NEC Article and Type | Not Rated |
| Shielded | Yes |
| Connector Type - Patch Cord | RJ45, RJ45 |
| Cable Shape | Round |
| Boot Type - Data cable | Bootless, Bootless |
| Transmission Speed | 100 Mbps |
| Length - Patch Cord | 85 m |
| Color of coat | green |
| Design of shield over cabling | Film + fabric |
| RoHS attention of conformity | 1 |
| Min. perm. surface temperature with stationary lines | -25 degree_Celsius |
| min. ambient temperature during operating phase | -25 degree_Celsius |
| Min. perm. surface temperature with open (not stationary) lines | 85 degree_Celsius |
| Number of wires | 4 |
| Outer diameter of the cable | 6.5 millimetre |
| max. traction stress | 150 N |
| Max. perm. surface temperature with open (not stationary) lines | -40 degree_Celsius |
| max. ambient temperature during operating phase | 70 degree_Celsius |
| USP information | IE FC TP Standard Cable 2x2,Industrial Ethernet,Twisted Pair |
| Marking of conductors | Color |
| halogen free (according to EN 50267-2-2) | 1 |
| Flame resistant according to standard | According to IEC 60332-3-22 |
| design of shield | Overlapped aluminum-clad foil, sheathed in a braided screen |
| Diameter of conductor | 0.75 millimetre |

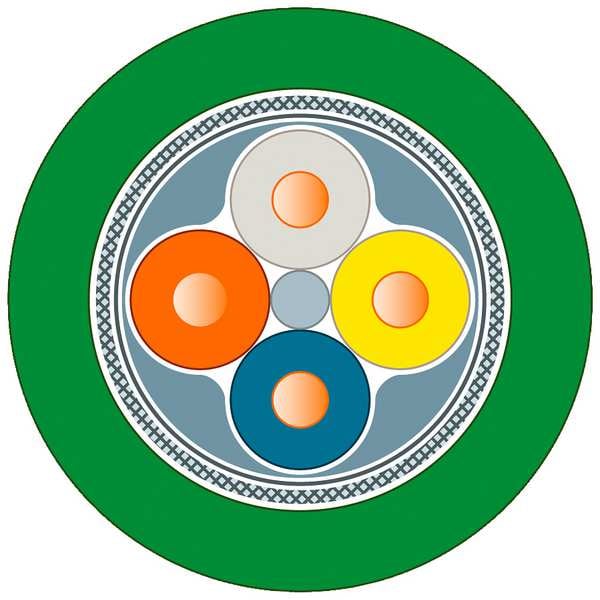

| Construction of the cabled element | Quad |
| Class of conductor | Kl.1 = single-wire |
| Material of the wire insulation | PP |
| Max. perm. surface temperature with stationary lines | 70 degree_Celsius |
| Fire Rating | Not Rated |
| Maximum Operating Temperature | 158 deg F |
| Minimum Operating Temperature | -40 deg F |
| Maximum Voltage Rating | 80 V |
| Resistance Properties | Chemical Resistant, Flame/Fire Resistant, Oil Resistant, UV Resistant |
| Outside Diameter | 0.3 in |
| Maximum Impedance | 100 ohms |
| Package Quantity | 1 |
