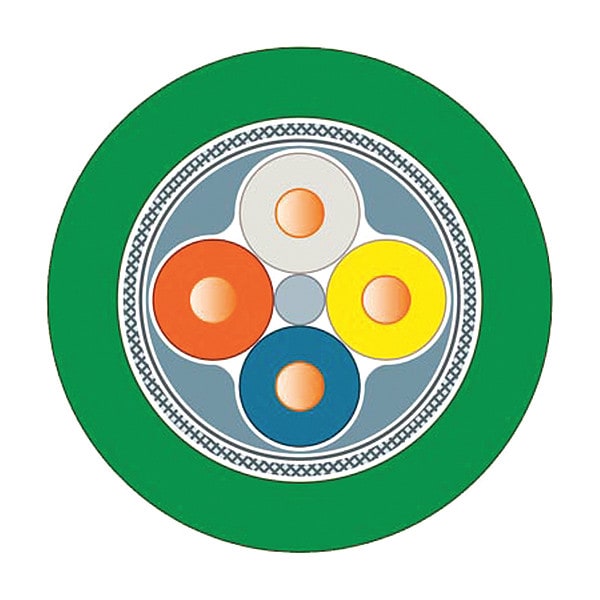

Industrial Ethernet FC TP Standard cable
| Item | Ethernet Cable |
|---|---|
| Cable Length | 328 ft |
| Standards | RoHS Compliant Directive (2011/65/EU) |
| Category - Data Cable | 5e |
| Bend Radius | 49 mm |
| Temp. Range | -40 to 167 deg F |
| Jacket Material | PVC |
| Jacket Color | Green |
| Shielded | Yes |
| NEC Article and Type | Not Rated |
| Item - Data Cable | Communication Cable |
| Conductor Size - Data Cable | 22 AWG |
| Fire Rating - Data Cable | Not Rated |
| Insulation Material | PE |
| Shielding Material | Aluminum-Clad Foil |
| Number of Conductors | 4 |
| Jacket Material - Wire and Cable | PVC |
| Transmission Speed | 100 Mbps |
| Boot Type - Data cable | Bootless, Bootless |
| Connector Type - Patch Cord | RJ45, RJ45 |
| Cable Shape | Round |
| Length - Patch Cord | 100 m |
| Outer diameter of the cable | 6.5 millimetre |
| Material of the wire insulation | PE |
| Marking of conductors | Color |
| max. traction stress | 150 N |
| Diameter of conductor | 0.64 millimetre |
| Min. perm. surface temperature with stationary lines | -40 degree_Celsius |
| design of shield | Overlapped aluminum-clad foil, sheathed in a braided screen |
| Design of shield over cabling | Film + fabric |
| max. ambient temperature during operating phase | 75 degree_Celsius |
| Max. perm. surface temperature with open (not stationary) lines | -40 degree_Celsius |
| min. ambient temperature during operating phase | -40 degree_Celsius |
| USP information | IE FC TP Standard Cable 2x2,Industrial Ethernet,Twisted Pair |
| Class of conductor | Kl.1 = single-wire |
| Number of wires | 4 |
| RoHS attention of conformity | 1 |
| Construction of the cabled element | Quad |
| Min. perm. surface temperature with open (not stationary) lines | 75 degree_Celsius |
| Material of the mantle | Polyvinyl chloride |
| Color of coat | green |
| Max. perm. surface temperature with stationary lines | 75 degree_Celsius |
| Maximum Voltage Rating | 80 V |
| Maximum Impedance | 100 ohms |
| Minimum Operating Temperature | -40 deg F |
| Fire Rating | Not Rated |
| Outside Diameter | 0.3 in |
| Maximum Operating Temperature | 167 deg F |
| Resistance Properties | Chemical Resistant, Flame/Fire Resistant, Oil Resistant, UV Resistant |
| Package Quantity | 1 |
