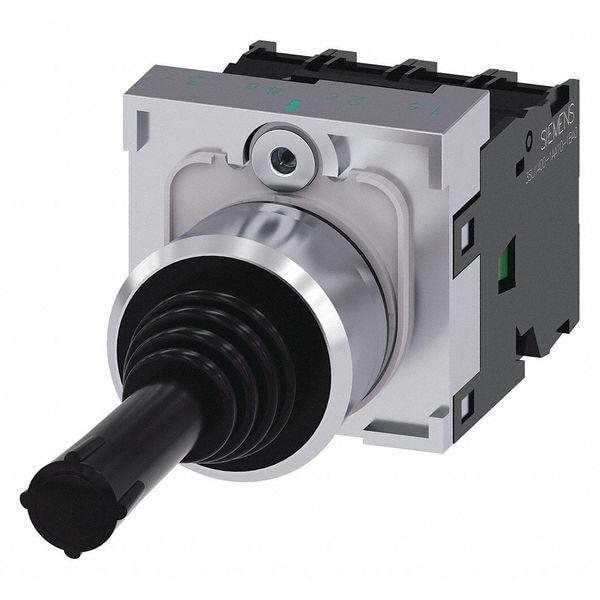

Operador de joystick con 4 direcciones de 22mm para un control preciso y ergonómico.
| Item | Joystick Operator |
|---|---|
| Size | 22 mm |
| Number of Directions | 4 |
| Contact Form | 1NO |
| Contact Rating | 10A @ 600V AC / 1A @ 600V DC |
| Joystick Material | Plastic |
| Action | Momentary |
| NEMA Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Latching / Non-Latching | Non-Latching |
| Direction of Operation | Vertical, Horizontal |
| Standards | CCC, CE, CSA, EAC, UKCA, UL Listed |
| Bezel | Nickel Plated Brass and Zinc Die Cast |
| IP Rating | IP65, IP67 |
| NEMA Contact Rating Designation | R300, A600 |
| Bezel Material | Metal |
| AC Contact Rating | 10 A @ 600 V |
| DC Contact Rating | 1 A @ 600 V |
| Switch Action | Momentary |
| Series | 3SU1 |
| Overall Depth | 4.92 in |
| Overall Width | 1.57 in |
| Shaft Length | 2.81 in |
| Overall Height | 1.57 in |
| Latch Type | Non-Latching |
| Number of Positions | 4 |
| NEMA Enclosure Rating | 1, 12, 13, 2, 3, 3R, 4, 4X |
| Panel Cutout Diameter | 22 mm |
| Package Quantity | 1 |
