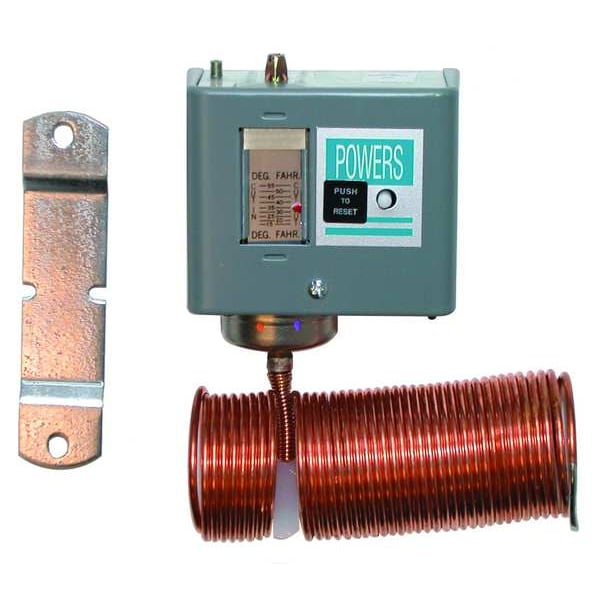

Line Volt Mechanical Tstat, Open/Close on Rise, Downstream Side of The Coil, DPST, 120 to 240V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 240V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 5 Degrees F |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 15 to 55 deg F |
| Mounting Location | Downstream Side of The Coil |
| Switch Type | DPST |
| Color | Gray |
| Width | 5 in |
| Height | 3-1/4 in |
| Includes | Mounting Bracket |
| Remote Sensing Bulb Included | Yes |
| Capillary Length | 20 ft |
| Enclosure Type | Galvanized/Steel |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Locked Rotor Amps @ 120V | 36 A, 96 A |
| Inductive Amps @ 240V | 3 A, 8 A |
| Inductive Amps @ 120V | 6 A, 16 A |
| Depth | 2-1/2 in |
| Locked Rotor Amps @ 240V | 18 A, 48 A |
| Number of Switches | 1 |
| Thermostat Voltage | 120 to 277 V AC |
| Standards | CSA Certified, UL Listed |
| Remote Sensing Capability | Yes |
| Full Load Amps @ 240VAC | 8 A |
| Temp. Sensitivity | 15 to 55 |
| Pilot Duty Contacts (VA) | 125 VA |
| Thermostat Switch Type | DPST |
| Sensing Bulb Length | 20 ft |
| Contact Rating Resistive @ 240V | 6 A, 8 A |
| Control Range | 15 to 55 deg F |
| Thermostat Heating/Cooling | Heating, Cooling |
| Mounting Type | Horizontal |
| Item | Line Volt Mechanical Tstat |
| Thermostat Programmable | No |
| Sensing Bulb Dia. | 1/8 in |
| Full Load Amps @ 120VAC | 16 A |
| Number of Relay Outputs | 0 |
| Thermostat Type | Freeze Protection Indoor Single-Stage Controls |
| Contact Rating Resistive @ 277V | 6 A, 7.2 A |
| For Use With | Supply Fan Motor and/or Outside Air Dampers |
| Contact Rating Resistive @ 120V | 6 A, 16 A |
| Application | Low Temp Detection |
| Control Type | Screwdriver |
| Features | Manual Reset |
| Electrical Connection Type | Screw Terminal |
| Contact Rating | 120 to 240V AC |
| Enclosure Color | Gray |
| Capillary Length/Bulb Diameter | 20 ft Capillary, 20 ft x 1/8 in Bulb |
| Maximum Control Temperature | 55 deg F |
| Temperature Sensitivity | 15 Degrees F to 55 Degrees F |
| Number of Heating Stages | 1 |
| Number of Cooling Stages | 1 |
| Mounting Hole Diameter | 1/4 in |
| Bulb Diameter | 1/8 in |
| Full Load Amps @ 120V AC | 6 A, 16 A |
| Pilot Duty Rating | 125 VA @ 24 to 600V AC, 57.5 VA @ 120 to 300V DC |
| Number of Poles | 2 |
| Sensor Location | Remote |
| Overall Depth | 2-1/2 in |
| Minimum Control Temperature | 15 deg F |
| Temperature Scale | Fahrenheit, Celsius |
| Differential Type | Fixed |
| Temperature Differential | 5 Degrees F |
| Mounting Direction | Horizontal |
| Bulb Length | 20 ft |
| Full Load Amps @ 240V AC | 3 A, 8 A |
| Switch Type/Action | Open, Close, DPST on Rise |
| Temperature Control Range | 15 to 55 deg F |
| Overall Width | 4 in |
| Resistive Amps @ 208V AC | 6 A, 9.2 A |
| Enclosure Material | Steel |
| Overall Height | 3-1/4 in |
| Stages | 1H, 1C |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
