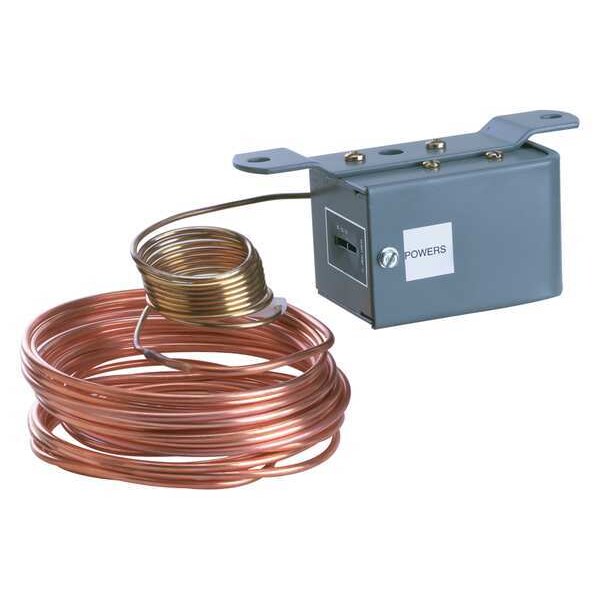

Line Volt Mechanical Tstat, Open/Close on Rise, Downstream Side of The Coil, SPDT, 120 to 240V AC
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 240V AC |
| Sensor Type | Hydraulic Capillary Bulb (Copper) |
| Differential | 12 Degrees F |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 35 to 45 deg F |
| Mounting Location | Downstream Side of The Coil |
| Switch Type | SPDT |
| Color | Gray |
| Width | 5 in |
| Height | 3-17/64 in |
| Control Range | 35 to 45 deg F |
| Contact Rating Resistive @ 240V | 8 A |
| Enclosure Type | Galvanized/Steel |
| Temp. Sensitivity | 15 to 55 |
| Depth | 2-1/2 in |
| Number of Switches | 1 |
| Standards | CSA Certified, UL Listed |
| Item | Line Volt Mechanical Tstat |
| Thermostat Programmable | No |
| Pilot Duty Contacts (VA) | 125 VA |
| Includes | Mounting Bracket |
| Remote Sensing Bulb Included | Yes |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Thermostat Heating/Cooling | Heating, Cooling |
| Full Load Amps @ 120VAC | 16 A |
| Sensing Bulb Dia. | 1/8 in |
| Sensing Bulb Length | 20 ft |
| Full Load Amps @ 240VAC | 8 A |
| Locked Rotor Amps @ 240V | 48 A |
| Capillary Length | 48 in |
| Thermostat Voltage | 120 to 240 V AC |
| Inductive Amps @ 120V | 16 A |
| Remote Sensing Capability | Yes |
| Thermostat Switch Type | SPDT |
| Mounting Type | Horizontal |
| Locked Rotor Amps @ 120V | 96 A |
| Inductive Amps @ 240V | 3 A, 8 A |
| Application | Heating and Cooling |
| For Use With | Supply Fan Motor and/or Outside Air Dampers |
| Thermostat Type | Freeze Protection Indoor Single-Stage Controls |
| Contact Rating Resistive @ 120V | 16 A |
| Number of Relay Outputs | 0 |
| Control Type | Screwdriver |
| Features | Automatic Reset |
| Stages | 1H, 1C |
| Minimum Operating Temperature | 0 deg F |
| Operating Temperature Range | 0 to 140 deg F |
| Bulb Length | 20 ft |
| Differential Type | Fixed |
| Changeover Type | Automatic |
| Number of Cooling Stages | 1 |
| Temperature Sensitivity | 15 Degrees F to 55 Degrees F |
| Frequency | 50 Hz, 60 Hz |
| Full Load Amps @ 240V AC | 8 A |
| Overall Height | 3-1/4 in |
| Contact Rating | 120 to 240V AC |
| Compatible System Type | Cooling Coils, Hydronic Heating Coils, Pipes |
| Overall Width | 2-3/8 in |
| Maximum Operating Temperature | 140 deg F |
| Enclosure NEMA Rating | 1 |
| Overall Depth | 2-3/8 in |
| Enclosure Material | Steel |
| Temperature Scale | Fahrenheit, Celsius |
| Electrical Connection Type | Screw Terminal |
| Enclosure Color | Gray |
| Maximum Control Temperature | 45 deg F |
| Pilot Duty Rating | 125 VA @ 24 to 277V AC |
| Bulb Diameter | 1/8 in |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Capillary Length/Bulb Diameter | 4 ft Capillary, 20 ft x 1/8 in Bulb |
| Sensor Location | Remote |
| Full Load Amps @ 120V AC | 16 A |
| Mounting Hole Diameter | 1/4 in |
| Number of Poles | 1 |
| Number of Heating Stages | 1 |
| Resistive Amps @ 208V AC | 9.2 A |
| Temperature Differential | 12 Degrees F |
| Temperature Control Range | 35 to 45 deg F |
| Minimum Control Temperature | 35 deg F |
| Mounting Direction | Horizontal |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
