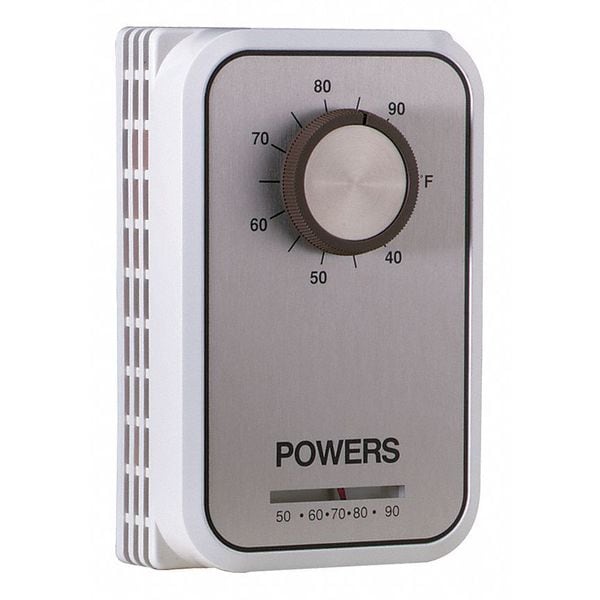

Line Volt Mechanical Tstat, Open/Close on Rise, wall, 40 Degrees to 90 Degrees F, SPDT
| Switch Action | Open/Close on Rise |
|---|---|
| Voltage | 120 to 240V AC |
| Sensor Type | Bi-Metallic Spring |
| Differential | 1.8 Degrees F |
| Display Type | Analog |
| Number of Relay Inputs | 0 |
| Thermostat Control Range | 40 to 90 deg F |
| Mounting Location | Wall |
| Switch Type | SPDT |
| Color | Beige |
| Width | 3 in |
| Height | 4-11/32 in |
| Mounting Type | Vertical |
| Control Range | 40 to 90 deg F |
| Standards | UL Listed |
| Contact Rating Resistive @ 240V | 10 A |
| Capillary Length | 20 ft |
| Thermostat Programmable | No |
| Remote Sensing Bulb Included | No |
| Inductive Amps @ 240V | 3 A |
| Inductive Amps @ 208V | 10 A |
| Thermostat Switch Type | SPDT |
| Thermostat Heating/Cooling | Heating, Cooling |
| Thermostat Item | Line Voltage Mechanical Thermostat |
| Inductive Amps @ 120V | 6 A |
| Contact Rating Resistive @ 120V | 10 A |
| Enclosure Type | Galvanized/Steel |
| Depth | 2 in |
| Temp. Sensitivity | 40 to 90 |
| Full Load Amps @ 120VAC | 6 A |
| Resistive Amps @ 208VAC | 10 A |
| Remote Sensing Capability | No |
| Full Load Amps @ 240VAC | 3 A |
| Contact Rating Resistive @ 277V | 10 A |
| Includes | Faceplate, Mounting Plate |
| Number of Switches | 1 |
| Item | Line Volt Mechanical Tstat |
| Thermostat Voltage | 120 to 240 V AC |
| Application | Heat and Cool |
| For Use With | Unit Heaters, Fan Coils, Blast Coils, Refrigerated Storage Rooms, Electric Heat, Duct Furnaces, Greenhouses |
| Overall Length | 4-3/4 in |
| Input Voltage | 120 to 240VAC |
| Thermostat Type | Line Voltage |
| Number of Relay Outputs | 0 |
| Voltage Range | 120 to 240 VAC |
| Features | Manual Reset |
| Control Type | Exposed Dial, Concealed Dial |
| Temperature Limiting | Yes |
| Stages | 1H, 1C |
| Number of Poles | 1 |
| Contact Type | Snap Action |
| Number of Cooling Stages | 1 |
| Compatible System Type | Electric Heating, Fan Coil Units |
| Number of Heating Stages | 1 |
| Changeover Type | Automatic |
| Full Load Amps @ 240V AC | 3 A |
| Overall Height | 3-5/8 in |
| Temperature Differential | 1.8 Degrees F (Heating), 2.3 Degrees F (Cooling) |
| Mounting Direction | Vertical |
| Full Load Amps @ 120V AC | 6 A |
| System Settings | Auto |
| Enclosure Color | Beige |
| Resistive Amps @ 208V AC | 10 A |
| Temperature Control Range | 40 to 95 deg F |
| Switch Positions | On-Off |
| Contact Rating | 120 to 240V AC |
| Overall Width | 5-5/8 in |
| Maximum Control Temperature | 95 deg F |
| Switch Type/Action | Open, Close, SPDT on Rise |
| Temperature Scale | Fahrenheit, Celsius |
| Minimum Control Temperature | 40 deg F |
| Overall Depth | 3-5/8 in |
| Electrical Connection Type | Screw Terminal |
| Shape | Rectangle |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
