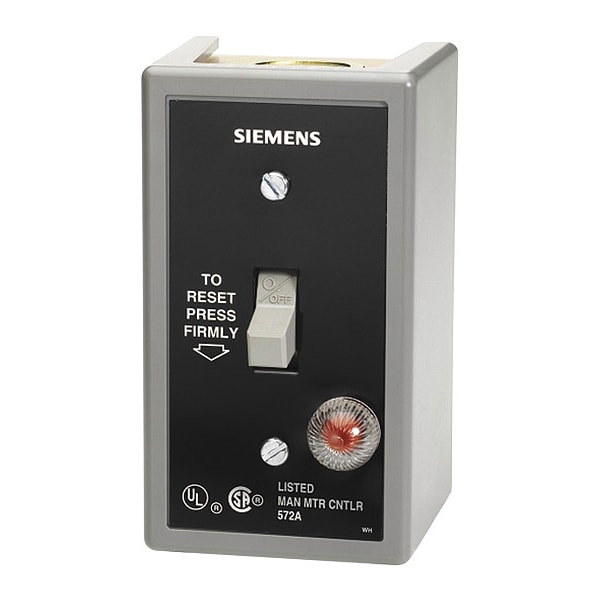

Arrancador de motor manual, clasificación NEMA 1, 2 polos.
| Item | Manual Motor Starter |
|---|---|
| Enclosure NEMA Rating | 1 |
| Number of Poles | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| Max. Voltage | 277V AC |
| Depth | 2.87 in |
| Operator | Toggle Switch |
| Width | 2.44 in |
| Pilot Light | Yes |
| Description/Special Features | Red Pilot Light, Surface Mounting |
| Height | 4-1/4 in |
| HP @ 1 Phase - 230V | 2 hp |
| Standards | Eclass 27-37-04-01, ETIM EC000074, ETIM EC000074 IDEA 4845 |
| Maximum Voltage Rating | 277 V AC |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Phase | Single |
| Overall Height | 4-1/4 in |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Overload Protection Type | Thermal |
| NEMA Enclosure Rating | 1 |
| Overall Depth | 2.87 in |
| Overall Width | 2.44 in |
| Includes Pilot Light | Yes |
| Series | Class SMF |
| Package Quantity | 1 |
